Automatic Bottle Filling Packaging Line is suitable for packing granular and powered stuffs such as hard candies, gummy candies, chocolate beans, jelly beans, marshmallows and cookies in different specifications.

Description

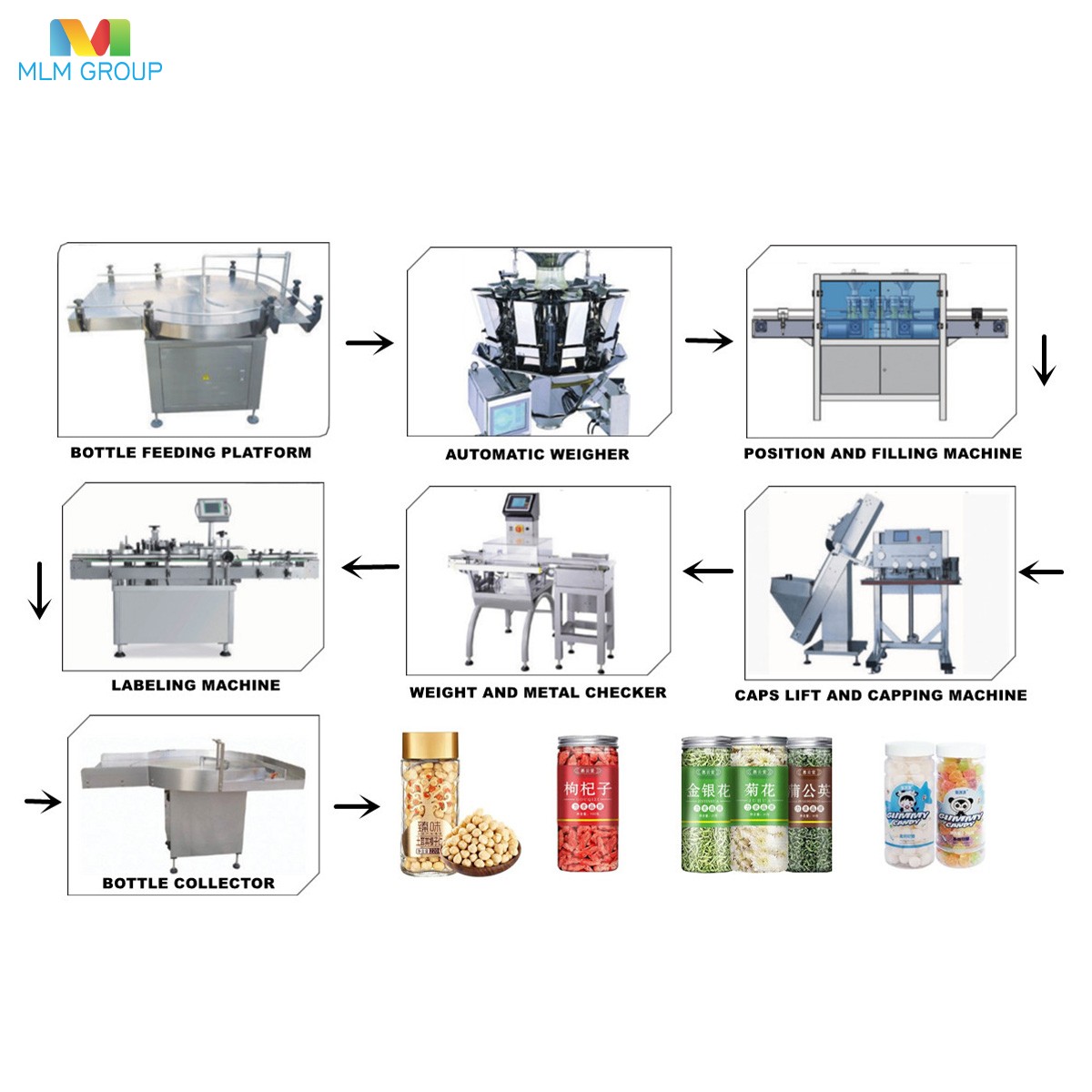

1.Process Flowchart:

• Bottles Collecting-Vibration Conveyor →Automatic Weighing → Working Platform → Automatic Feeding → Capping → Foil Sealing → Printing → Labeling → Finished Products.

2.Technical Parameters:

• Products: Gummy Candies/Granular Stuffs/Powdered Stuffs.
• Packing Speed: 30-35Bottles/Min
• Weighing Accuracy: + 0.5-1.5Gram
• Compressed Air Consumption:7M³/Min  0.7-0.7MPa(To Be Prepared By The Buyer)
• Total Power: 30-35KW(Not Including Other Supporting Equipment.

3.Description:

• The packaging line of this bag is in accordance with the national food standard, and the whole production process is highly automated, which meets the standards of Chinese food production.
• This line form a complete set of production line equipment appearance and material contact parts are of 304 stainless steel, all the machine structure is designed according to the food hygiene standard to choose;
• It need to often unpick and wash easy disassembly structure are adopted a connection, ensure the succession or change product processing health convenience;

4. Preparation Works By Buyer:

• Land Area Required: 16000*4800*4000MM
• Power Supply Source: 380V/50Hz/3Phases/5Wires/AC
• Compressed Air: 1M³/Min 7-0.9MPa (Needs Stable Compressed Air Source With Storage Tank)
• Packing Material:Round Plastic Bottles;
• Packing Weight: 100-500Grams/Bottle.
• Packed Bottles Sizes:Bottle Mouth Inner Diameter: 38MM; Bottle Mouth Outer Diameter:41MM; Bottle Height: 118MM; Cap Outer Diameter: 65MM;(Can Be Customized)

5. Automatic Bottle Filling Packaging Line Technical Parameter:
1.Model: PD50/PD100
2.Dimension: 15000×6000×4000MM (Can Be Customized)
3.Line Weight: 4-6Tons
4.Packing Weight Range: 20-1000Grams/Bottle
5.Packing Speed: 20-100Bottles/Min (Depend On Packing Items)
6.Total Power: 20-35KW/3PH/380V/50HZ
7.Application for: Candy, Chocolate Beans, Marshmallow, Cookies and other granular stuffs.
