Product Overview

  • The DR3710 digital pressure gauge employs a high-precision diffused silicon pressure sensor. Its circuitry utilizes a 24-bit dedicated AD conversion chip and industrial-grade MCU, making it suitable for real-time monitoring in diverse field applications.
  • This product is designed for portable devices, metering equipment, and indoor pipeline fluid pressure testing.

Technical Specifications

Pressure Parameters
Range-0.1MPa┅0MPa~0.01MPa┅250MPa
Overload2 times full scale (＜60MPa) 1.1 times full scale (≥60MPa)
Pressure TypeGauge pressure, sealed gauge pressure
Electrical Parameters
Power Supply3V DC (powered by AAA batteries) Two AAA batteries
Display Range4-1/2 digits

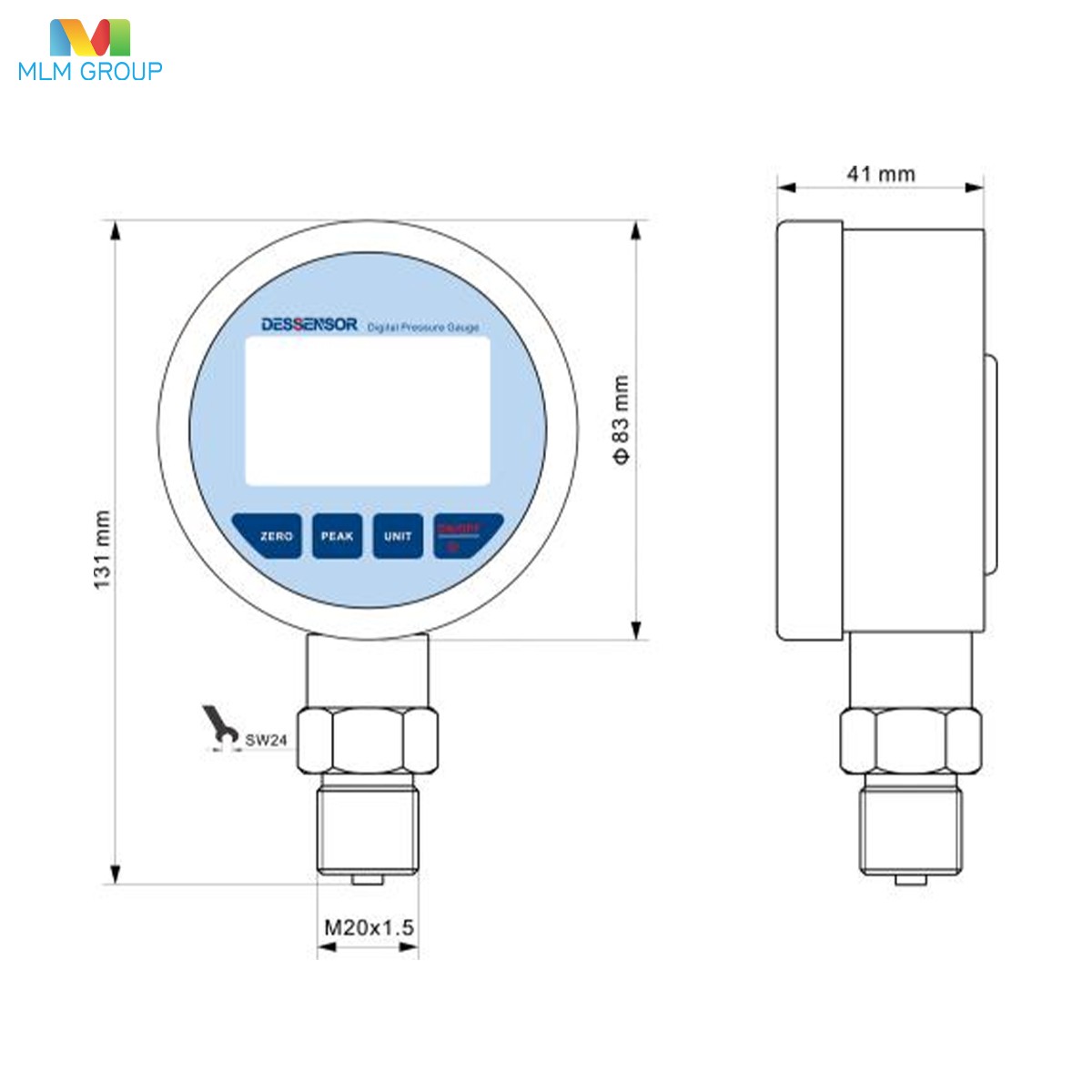

Structural Parameters
Pressure InterfaceStainless Steel 304
HousingStainless Steel 304
Sensor316L Stainless Steel
Sealing RingFluorocarbon Rubber
Protection RatingIP54
Environmental Conditions
Medium SuitabilityVarious fluids that do not corrode 316L stainless steel or fluorocarbon rubber
Operating Temperature-10℃～+60℃
Storage Temperature-20℃～+60℃
Performance Indicators
Accuracy±0.1％FS±0.25％FS
Zero Temperature Coefficient0.03%FS/℃（≤100kPa）；0.02%FS/℃（＞100kPa）
Full-Scale Temperature Coefficient0.03%FS/℃（≤100kPa）；0.02%FS/℃（＞100kPa）
Long-Term Stability±0.1% of full scale per year (MAX)
