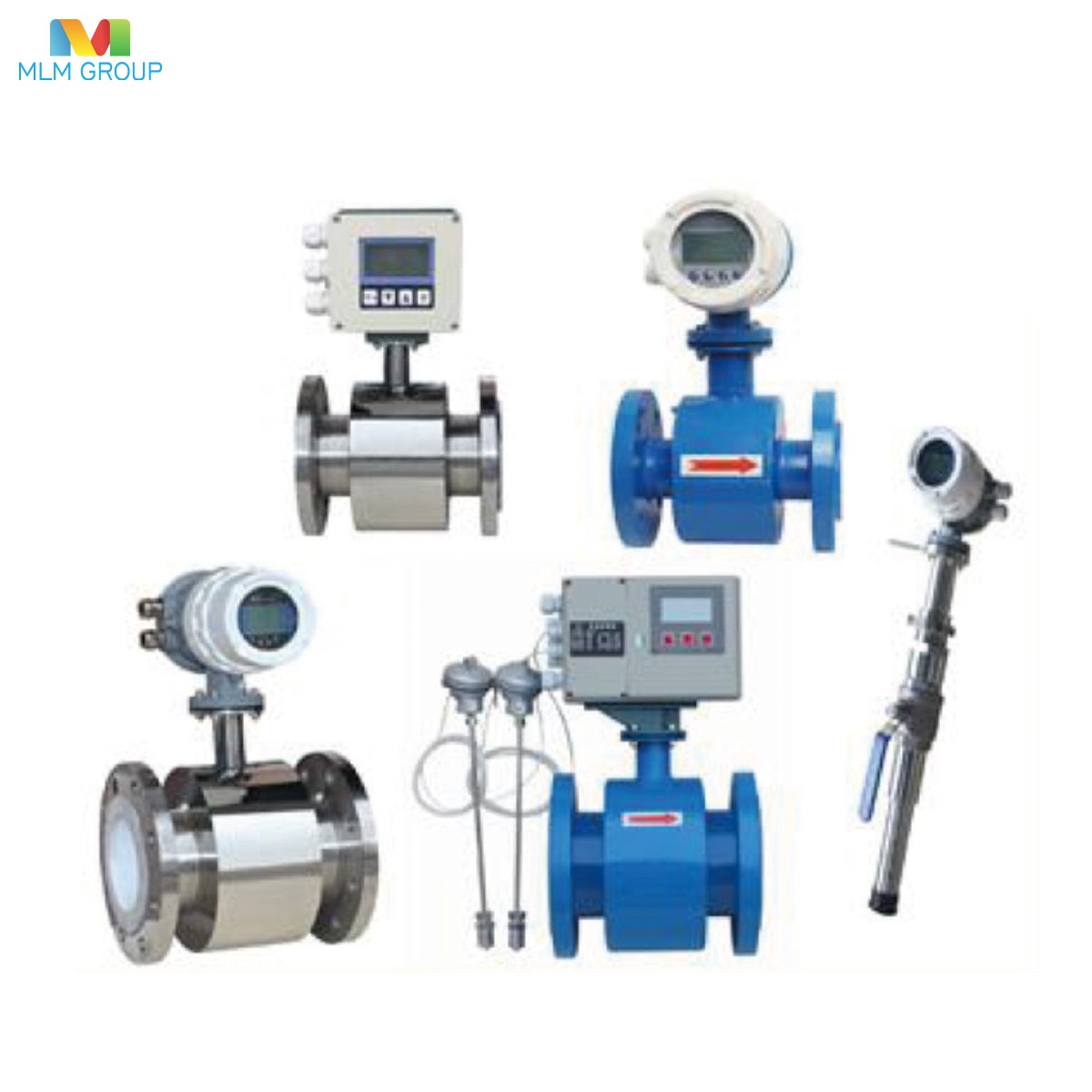

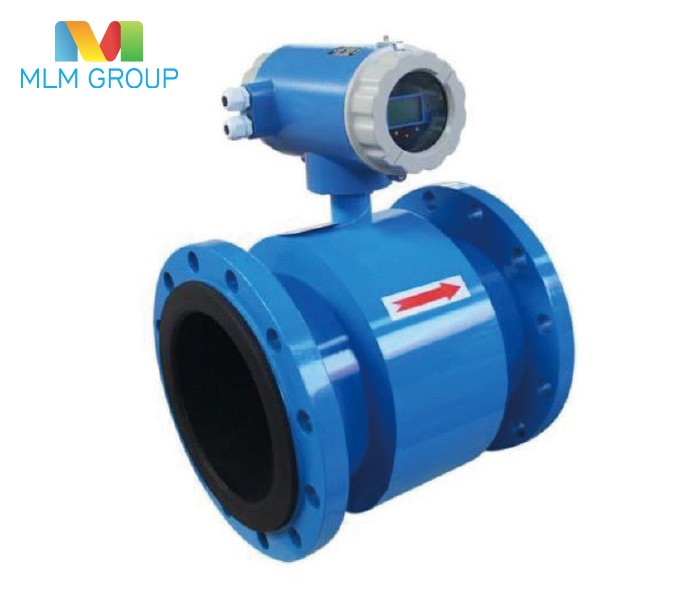

Electromagnetic Flow Meter

Detail description

Advantages

Engineered and manufactured for the water and waste water industry
Can measure the flow rate of all conductive liquid
NSF Approved for potable water
Proven and unsurpassed lifetime performance
Long-term reliability and durability
Available IP68 rating
Available for direct burial installatio

Basic parameters

Measuring diameter	DN3 —DN3000
Flow rate measuring range	0.2m/s —15 m/s
Working temperature	-20 °C ~+50°C
Medium conductivity	>5us/cm
Supporting Accuracy class	0.2%/0.5%
Measurement parameters	Instantaneous flow rate, cumulative flow, forward and reverse flow
Operating humidity	≤95%
Protection class	IP65/IP68
Detection and alarm parameters	Fluid empty pipe detection alarm, the excitation current detection alarm
Communication	RS485 (modbus protocol), HART,GPRS
Flow Unit	m³/h, m³/m, m³/s, L/m, L/h, L/s, UKG, USG
Power supply	DC 20-36V AC 85-250V 3.6V battery
Language	English display (other language can be customized)

Magnetic flow meter principle

Electromagnetic flow meters, or mag meters, are comprised of a transmitter and sensor that together measure flow. The magnetic flow meter’s sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe. The transmitter takes the voltage generated by the sensor, converts the voltage into a flow measurement and transmits that flow measurement to a control system.

Electromagnetic flow meter model

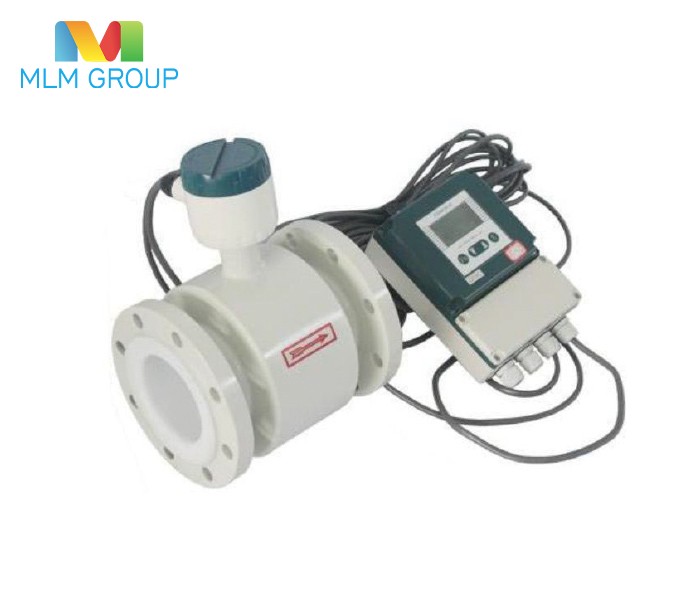

Separated flow meter / remote flow meter
Flange type magnetic flow meter

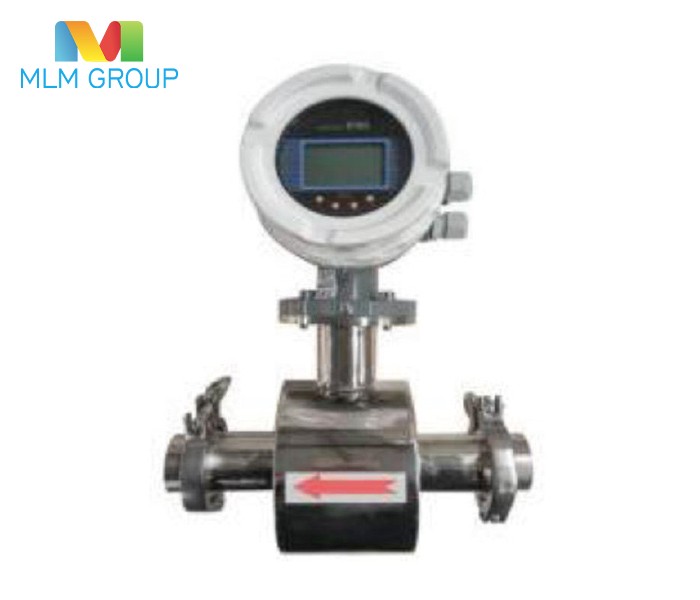

Clamp on type/Sanitary magnetic flowmeter

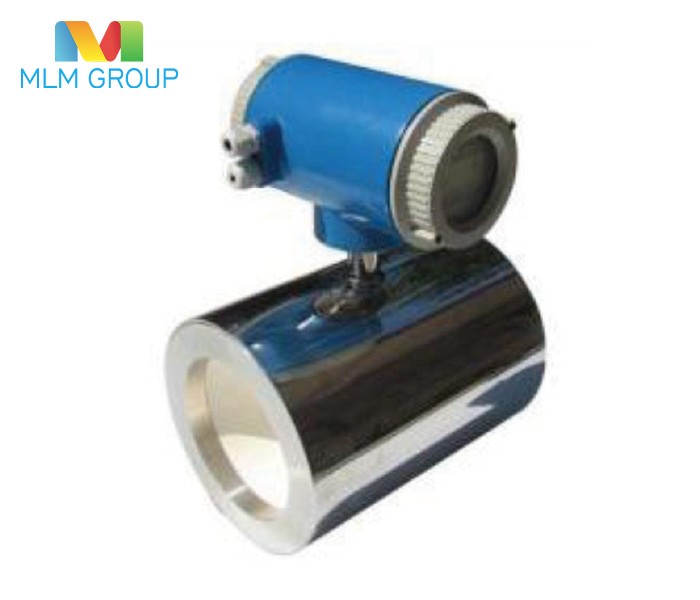

Wafer magnetic flow meter

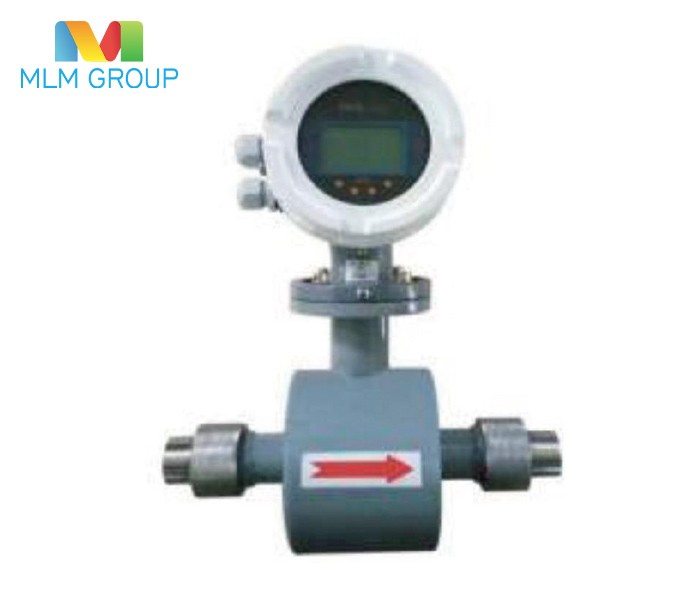

Screw type magnetic flow meter

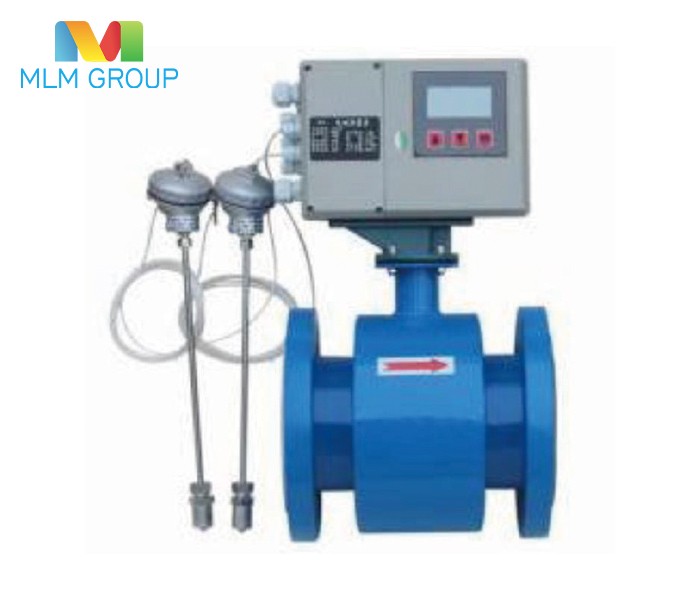

Heat energy flow meter

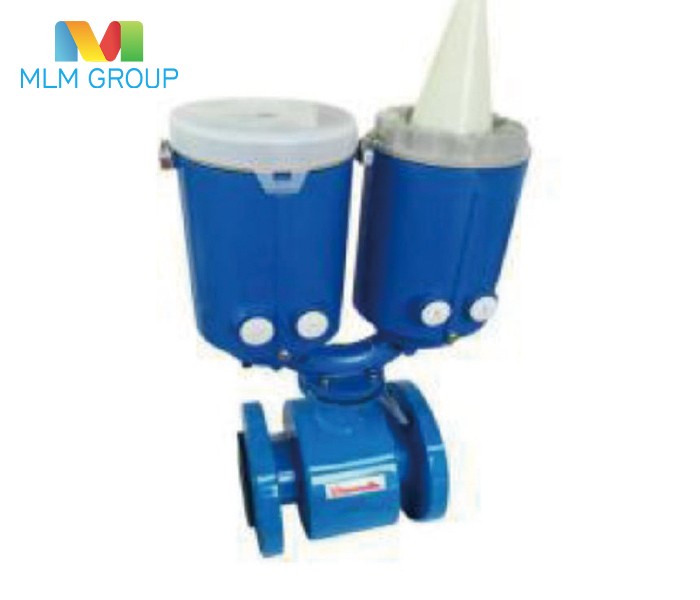

GSM magnetic flow meter

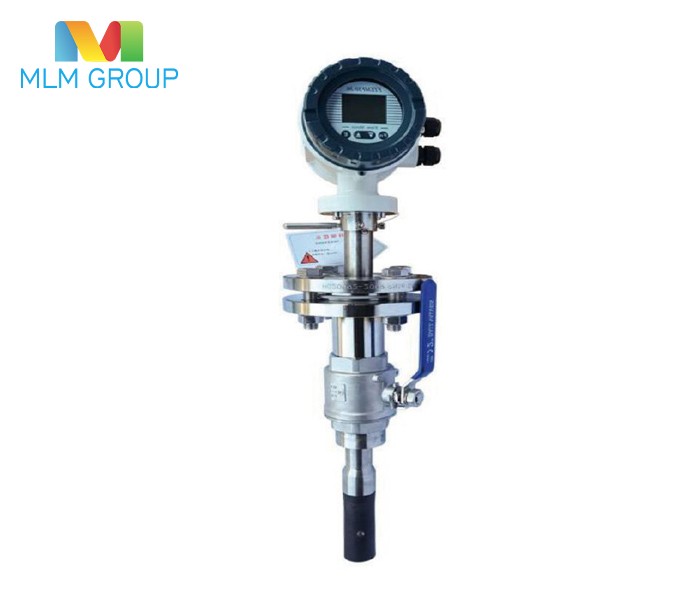

Insertion type flow meter
