Candy Production Line

Hard Candy Die Formed Production Line
Hard Candy Die Formed Production Line
Hard Candy Die Formed Production Line
Hard Candy Die Formed Production Line

Hard Candy Die Formed Production Line

Candy Production Line
By changing the molding dies, it can produce hard candy products in various shapes and specifications, such as liquid-filled hard candies and powder-filled hard candies.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Introduction To Hard Candy Die Formed Production Line:

The equipment features comprehensive specifications, versatile functions, simple operation, and high automation. It can be customized to meet specific customer requirements. By changing the molding dies, it can produce hard candy products in various shapes and specifications, such as liquid-filled hard candies and powder-filled hard candies.

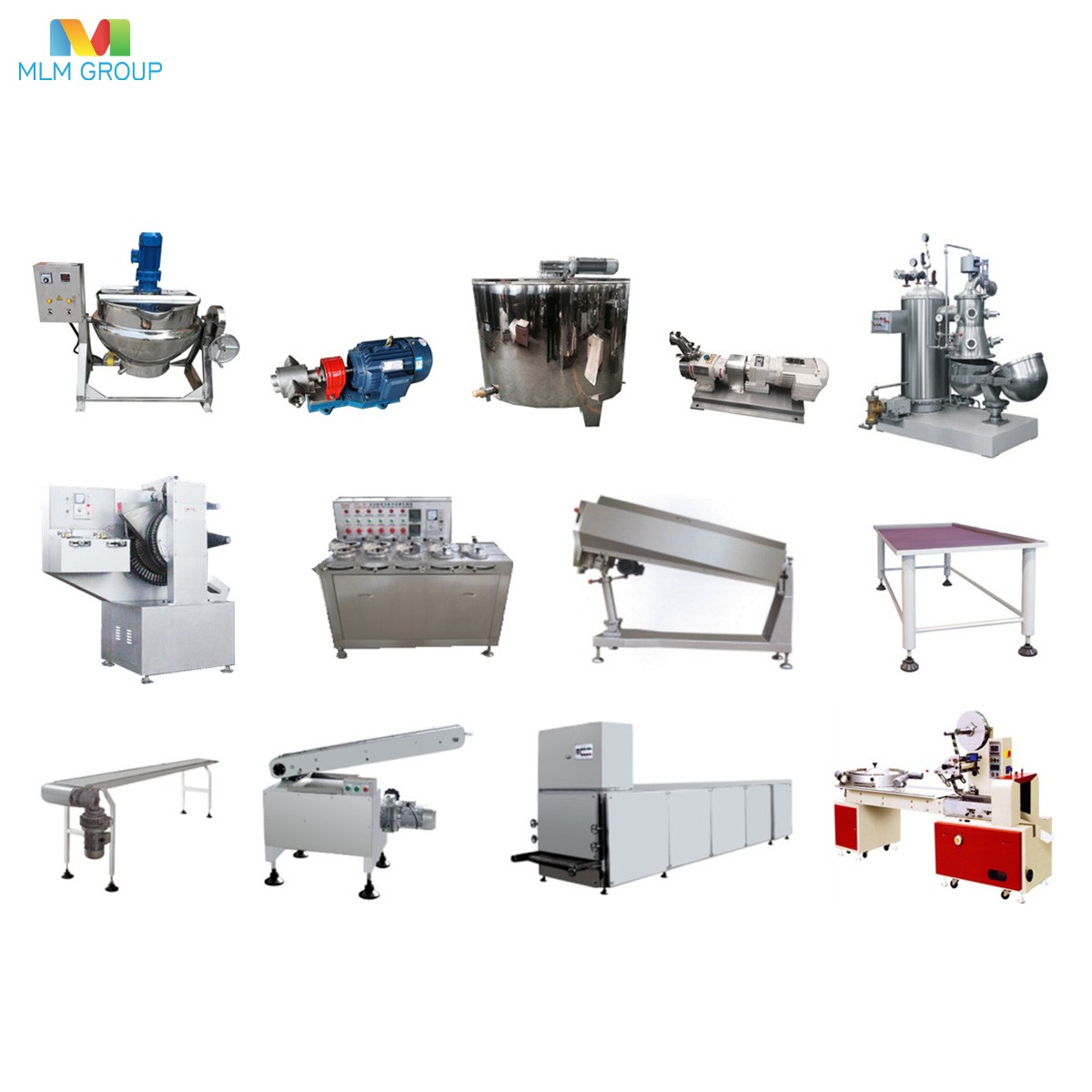

Components of Hard Candy Die Formed Production Line:

01.Steam Sugar Melting Pot
02.Gear Pump
03.Syrup Storage Tank
04.Rotor Pump
05.Hard Candy Cooker
06.Cooling Table
07.Center Filling Machine
08.Heat Preservation Roller
09.Rope Sizer
10.Cooling Conveyor
11.Die Type Forming Machine
12.Swing Distributing Machine
13.Cooling Tunnel
14.Pillow Type Packing Machine

Technical Parameters of Hard Candy Die Formed Production Line:

Machine ModelMLM300/MLM500
Output Capacity300KG/H-500KG/H
Forming Speed1000-2000Pcs/Minute
 Candy WeightOutside Shell 7Grams; Inside Filling 2Grams
 Candy ShapeCustomized
 Main MaterialSUS304
 Heating SourceElectricity or Steam Heating
Steam Consumption600KG/H-1000KG/H
 Steam Pressure0.2MPa-0.8MPa
Installed Power Electric Heating80/150KW
 Steam Heating50/80/KW
 Power Supply380V/220V/50Hz/60Hz/3PH
 Area Covered25-30*5-8*3M
