LM01X Series Submersible Level Transmitters

Product Features

◆There are many options for signals;
◆Full welding process, durable;
◆Anti-interference and surge protection;
◆Lightning protection, compliant with IEC61000-4-5/Level-4 standard.

Product Description

The LM01X series submersible level transmitters are based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid. They adopt the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert static pressure into electrical signals. Combined with a dedicated digital circuit, after signal processing such as signal amplification, linear compensation, anti-interference, and surge protection, they are integrated products that output industrial standard signals.

Product Application

◆Waterworks,chemical plants;
◆Sewage treatment;
◆Deep wells,dams;
◆Flood control, irrigation.

Technical Parameters

Measurement Range	0…1…200mH2O
Pressure Type	Gage pressure(G);
	Sealed gauge pressure（S）;
	Absolute pressure（A）
Output Signal	4…20mA; 0.5…4.5VDC; 0…10VDC; IIC; RS485; SDI-12
Input Voltage	8…30V DC; 5…8VDC; 3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0…50℃; -10…70℃
Operating Temperature	-20～+85℃
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year; ≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-RD
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	316L; Tantalum; C-276; TC4
Shell material	304SS; 316L; TC4
Electrical connection	Direct outlet
Process connection	//
Protection Level	IP68
Explosion-Proof Grade	Ex ia II CT6 (Optional)

Product Type

Selection Guide

LM01-	Submersible Level Transmitter

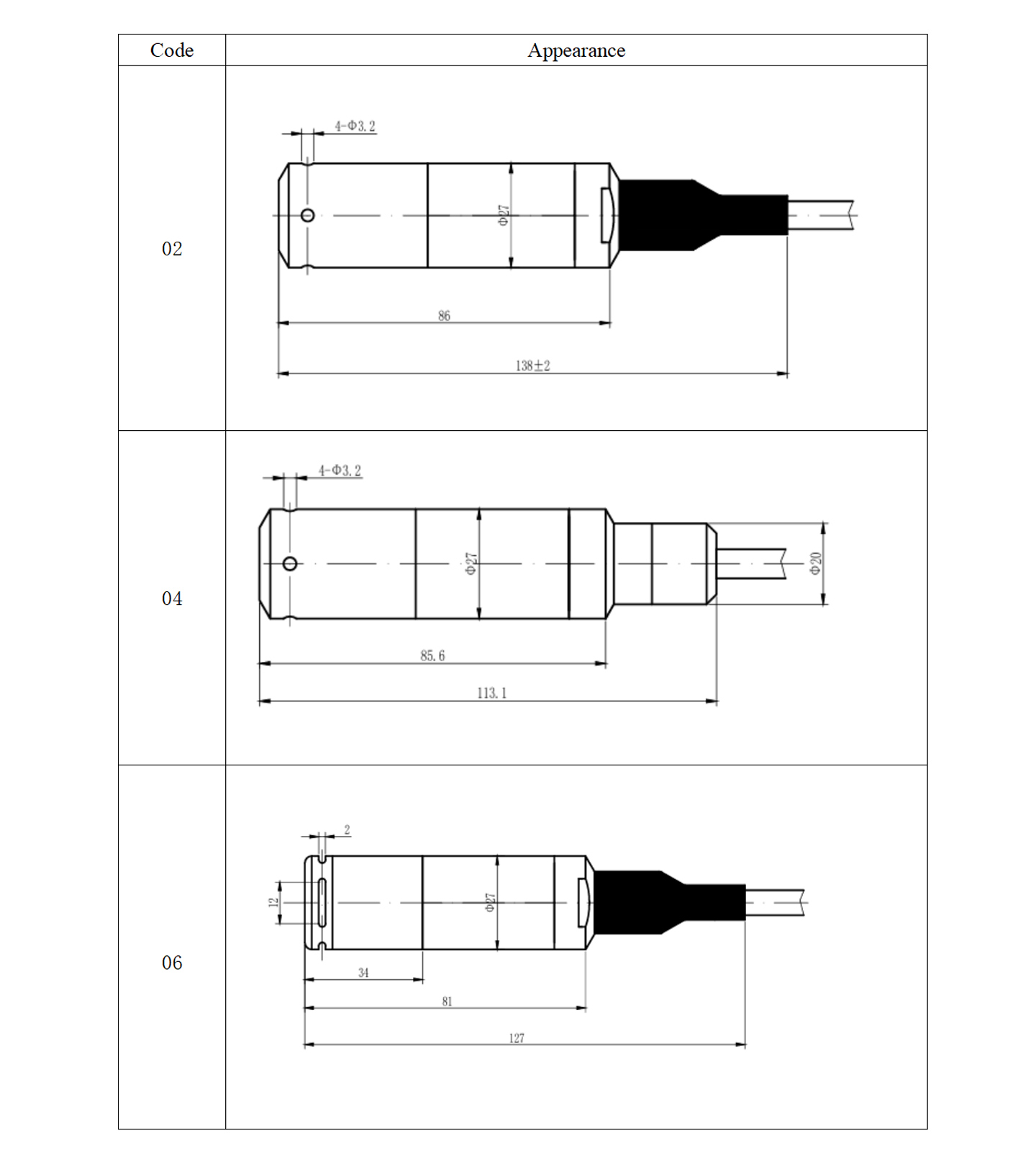

	Code	Appearance
	1	Fully welded appearance
	2	New structure fully welded appearance
	…	03: “O” ring sealed appearance; 04: No sheath appearance;
		06: Plastic pressure inlet appearance; … 0T: Special customization
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn
						C8
						G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
LM01-	2	S1	U1	30	C1	X010PU	-[0…10]	mH2O
