LM03X Series Split-Type Level Transmitters

Product Features

◆There are many options for signals;

◆Anti-interference，Surge protection;

◆316L diaphragm, explosion-proof housing outlet;

◆Lightning protection, compliant with IEC61000-4-5/Level-4 standard.

Product Description

The LM03X series split-type level transmitters are based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid. The product adopts the piezoresistive effect of diffused silicon sensitive elements to convert static pressure into electrical signals. Combined with a dedicated digital circuit, after signal processing such as signal amplification, linear compensation, anti-interference, and surge protection, it is an integrated product that outputs industrial standard signals.

Product Application

◆Waterworks, chemical plants;

◆Sewage treatment;

◆Deep wells, dams;

◆Flood control, irrigation.

Technical Parameters

Measurement Range	0…10…200mH2O
Pressure Type	Gage pressure(G); Sealed gauge pressure（S）; Absolute pressure（A）
Output Signal	4…20mA;0.5…4.5VDC;0…10VDC;IIC;RS485;SDI-12
Input Voltage	8…30V DC;5…8VDC;3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0…50℃; -10…70℃
Operating Temperature	-20～+85℃
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year;≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-R_D 其中：U为电源电压，R_D电源内阻
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	Al2O3
Shell material	304SS;316L;TC4;PTFE;PVDF
Electrical connection	Direct outlet
Process connection	//
Protection Level	IP68
Explosion-Proof Grade	Ex ia Ⅱ CT6 (Optional)

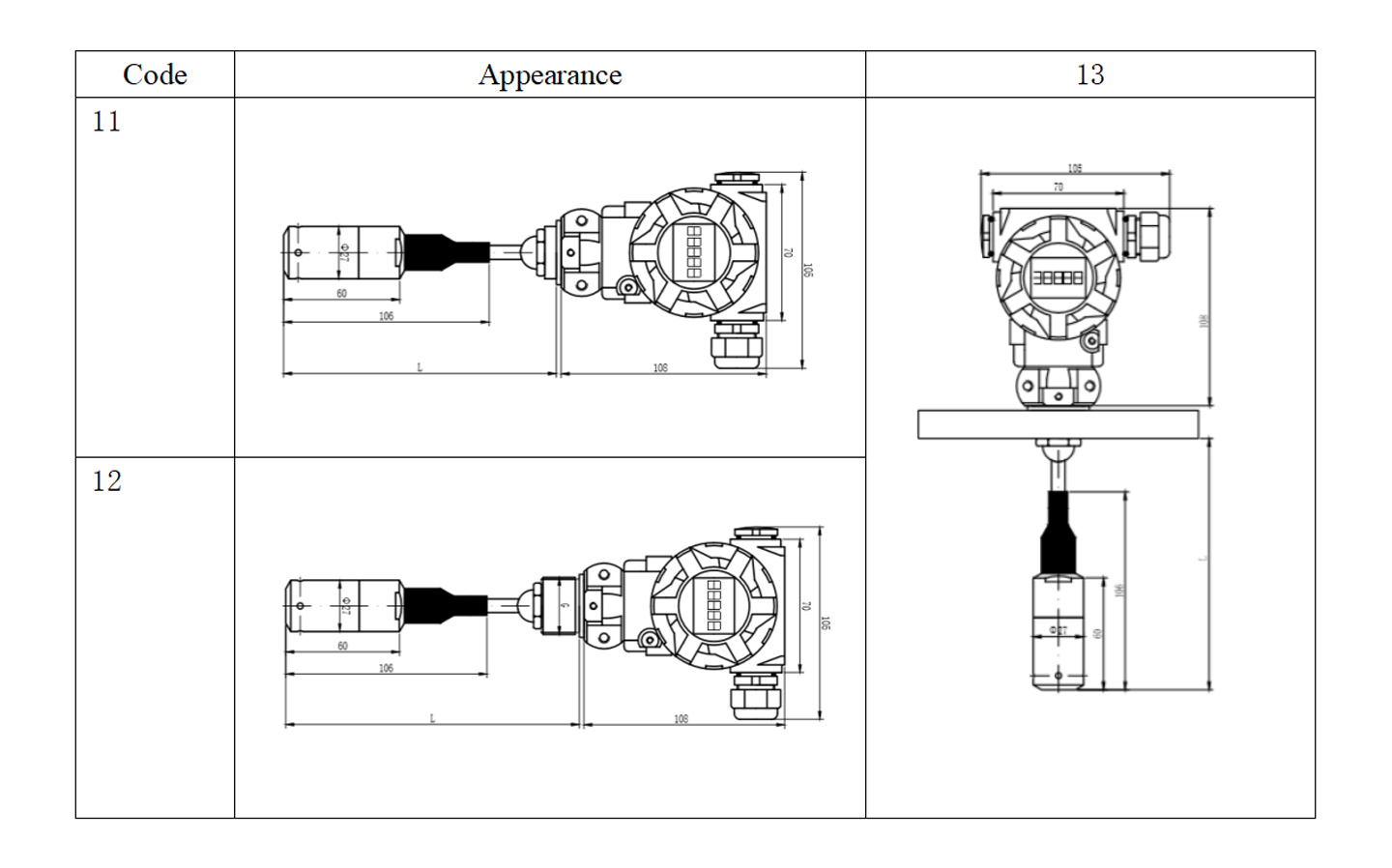

Product Type

Code	Appearance	13
11
12

Selection Guide

LM03-	Split-Type Level Transmitter
	Code	The left digit represents the display mode (1: LCD; 2: Nixie tube; 3: No display), The right digit represents the installation mode.
	11	LCD display with bracket installation
	12	LCD display with thread installation
	…	13: LCD display with flange installation; 0T: Special customization
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn C8 G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
LM03-	12	S1	U1	30	C1	X010PU	-[0…10]	mH₂O
