LM08X Series Pressure-Guided Liquid Level Transmitter

Product Features

◆Wide measurement range:0～1m～20mH2O；

◆There are many options for signals;

◆Anti-interference and surge protection;

◆Suitable for high-temperature and small-range measurement.

Product Description

The sensor part and signal processing circuit of the high-temperature gas-guided liquid level transmitter are designed inside the junction box. The gas in the gas collection cylinder submerged in the liquid contacts the medium, and the pressure is transmitted to the sensor through the pressure guiding tube, avoiding direct contact between the sensor and the measured medium. This product is specially designed for high-temperature or strongly corrosive liquids, effectively solving the problem of difficult level measurement of high-temperature liquids. It is particularly suitable for measuring the level of medium and small-range and strongly corrosive media.

Product Application

◆High-temperature liquid media

◆Corrosive media

◆Liquid level detection, system control

Technical Parameters

Measurement Range	0…1…20mH2O
Pressure Type	Gage pressure(G); Sealed gauge pressure（S）; Absolute pressure（A）
Output Signal	4…20mA;0.5…4.5VDC;0…5VDC;0…10VDC;IIC;RS485
Input Voltage	8…30V DC;5…8VDC;3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0…50℃; -10…70℃
Operating Temperature	-20～+85℃;-40℃～125℃
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year;≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-R_D 其中：U为电源电压，R_D电源内阻
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	316L;Al2O3
Shell material	304SS;316L;TC4
Electrical connection	Direct outlet
Process connection	//
Protection Level	IP68
Explosion-Proof Grade	Ex ia Ⅱ CT6 (Optional)

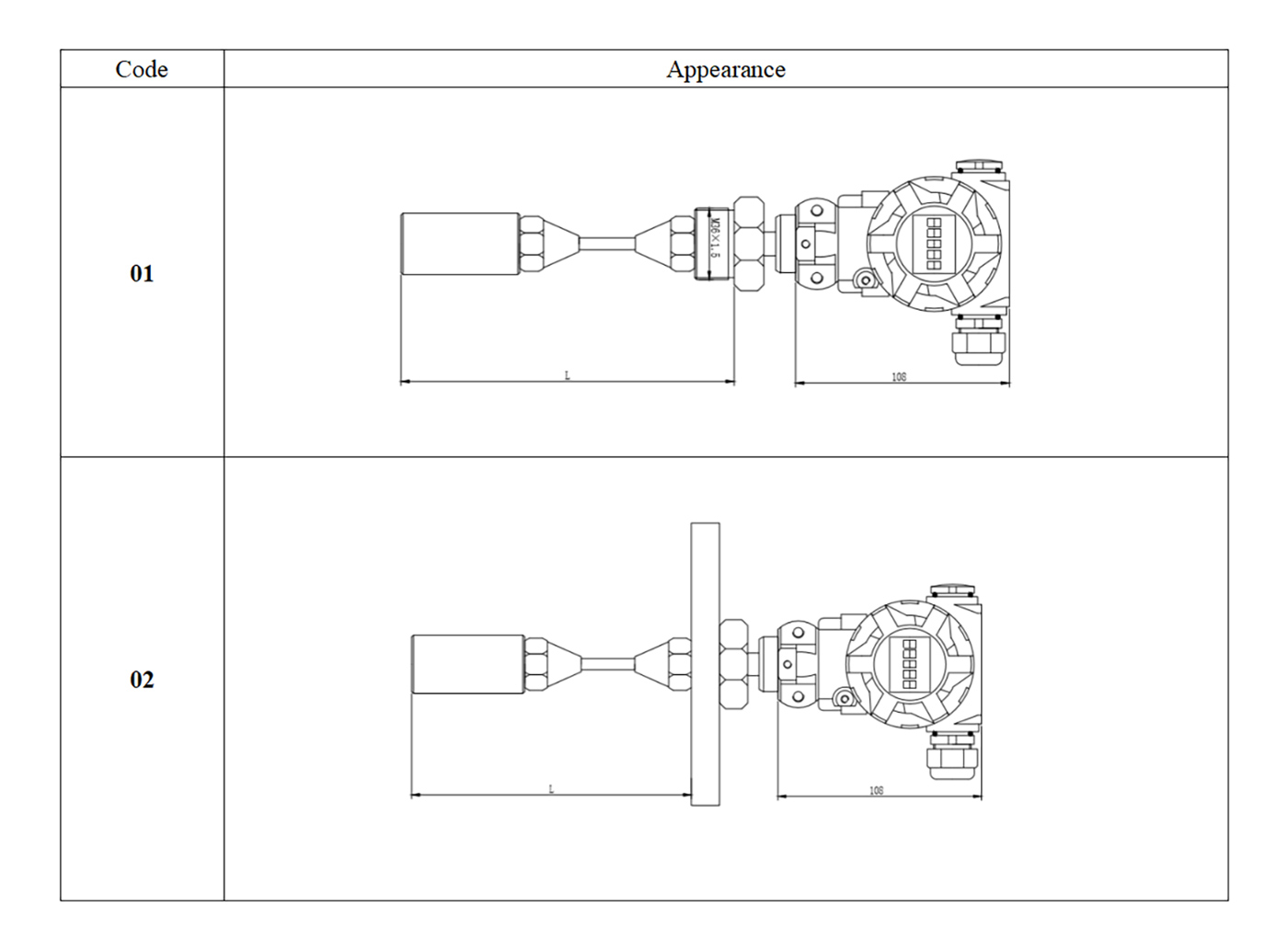

Product Type

Code	Appearance
01
02

Selection Guide

LM08-	Pressure-guided liquid level transmitter
	Code	Appearance
	01	Threaded installation
	02	Flange installation
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn C8 G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
LM08-	01	S1	U1	30	C1	X001PU	-[0…1]	mH₂O
