LM09X Series Anti-Corrosion Liquid Level Transmitter

Product Features

◆There are many options for signals;

◆Wide measurement range:0~1~100mH₂O

◆Anti-interference，Surge protection;

◆PTFE housing, resistant to strong corrosion.

Product Description

LM09X series anti-corrosion liquid level transmitters are specially designed for strong corrosion liquid level measurement. The product adopts imported ceramic piezoresistive or capacitive sensors as sensitive elements, and the housing is made of highly corrosion-resistant PTFE or PVDF materials. Cooperating with a dedicated signal conditioning circuit, after comprehensive linear error and temperature error compensation, it is made into a pressure liquid level measurement product with extremely strong corrosion resistance.

Product Application

◆Chemical plants, sewage treatment plants

◆Various acidic liquids and gases except hydrofluoric acid

◆High-temperature media

Technical Parameters

Measurement Range	0…1…100mH2O
Pressure Type	Gage pressure(G); Sealed gauge pressure（S）; Absolute pressure（A）
Output Signal	4…20mA;0.5…4.5VDC;0…5VDC;0…10VDC;IIC;RS485
Input Voltage	8…30V DC;5…8VDC;3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0～50℃;-10～70℃
Operating Temperature	-20～+85℃;-40℃～125℃
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year;≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-R_D 其中：U为电源电压，R_D电源内阻
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	99.9% Al₂O₃(ceramic capacitor)； 96% Al₂O₃（ceramic piezoresistive）
Shell material	304SS;316L;TC4;PTFE;PVDF
Electrical connection	Direct outlet
Process connection	//
Protection Level	IP68
Explosion-Proof Grade	Ex ia Ⅱ CT6 (Optional)

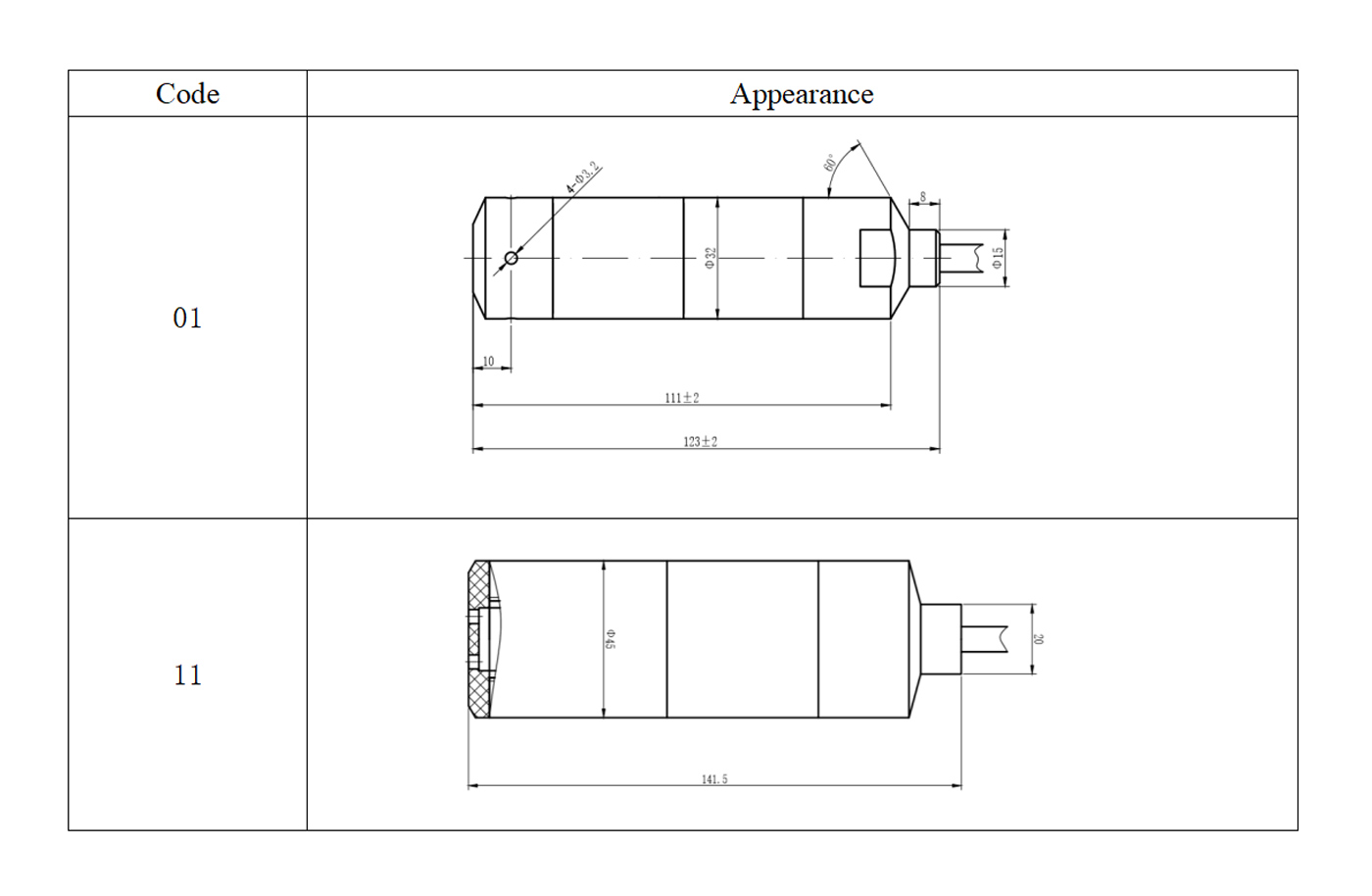

Product Type

Code	Appearance
01
11

Selection Guide

LM09-	Anti-corrosion liquid level transmitter
	Code	Left digit represents product type; Right digit represents electrical interface
	01	Ceramic piezoresistive
	11	Ceramic capacitor
	…	0T：Special customization
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn C8 G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
LM09-	11	S1	U1	30	C1	X010PU	-[0…10]	mH₂O

Pressure Transmitter
