PM04X Series High-Temperature Pressure Transmitter

Product Features

◆There are many options for signals;
◆Anti-interference，Surge protection;
◆316L stainless steel isolation diaphragm, integrated design;
◆Built-in heat sink, temperature range up to -40℃～150℃;

Product Description

The PM04X series high-temperature pressure transmitter adopts a diffused silicon oil-filled core as the pressure measuring element. The process connection is equipped with a built-in heat sink for cooling or uses a high-temperature sapphire sensor. The whole device is combined with a dedicated digital circuit, and after signal processing such as signal amplification, linear and temperature compensation, anti-interference, and surge protection, it outputs industrial standard signals, serving as an integrated product for high-temperature environment applications. Additional external heat sinks can be used for pressure measurement in higher-temperature environments.

Product Application

◆Petroleum chemical industry;
◆Metallurgy and electric power industry;
◆High-temperature liquids and gases;
◆Measurement and control technology;

Technical Parameters

Measurement Range	-100…10…1000KPa
	0…1…100MPa
Pressure Type	Gage pressure(G);
	Sealed gauge pressure（S）;
	Absolute pressure（A）
Output Signal	4…20mA;0.5…4.5VDC;0…10VDC;IIC;RS485
Input Voltage	8…30V DC;5…8VDC;3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0…50℃; -10…70℃
Operating Temperature	-40…150℃（with 5 heat sinks）；
	-40…250℃（with 10 heat sinks）；
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year;≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-RD
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	316L;C-276;TC4
Shell material	304SS;316L;C-276;TC4
Electrical connection	DIN43650A or custom
Process connection	M20×1.5 or custom
Protection Level	IP65;IP66;IP67;IP68
Explosion-Proof Grade	Ex ia II CT6 (Optional)

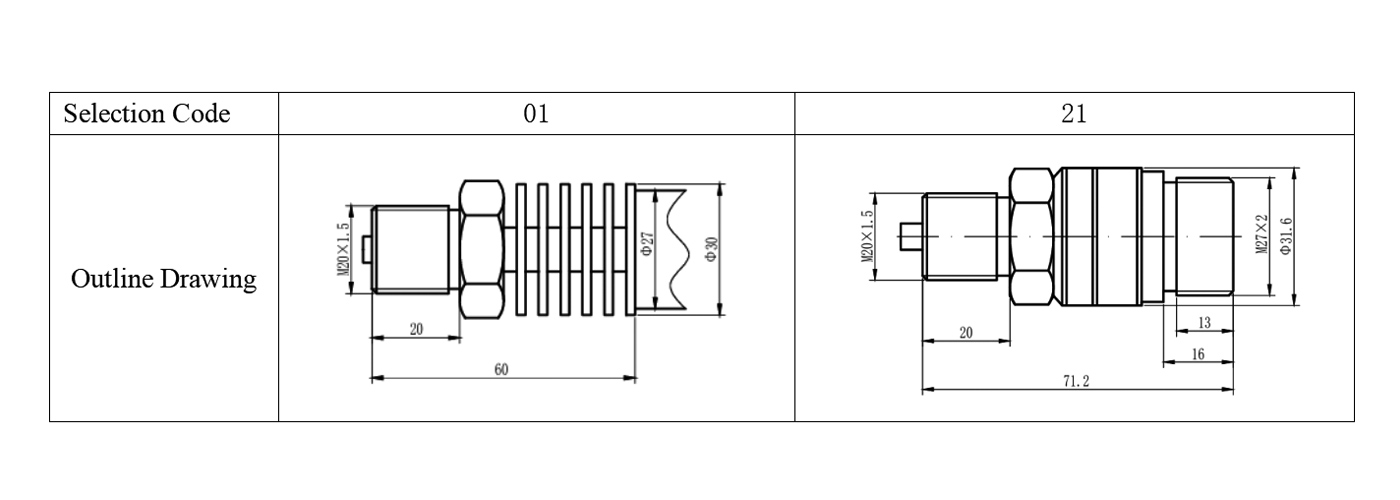

Product Type

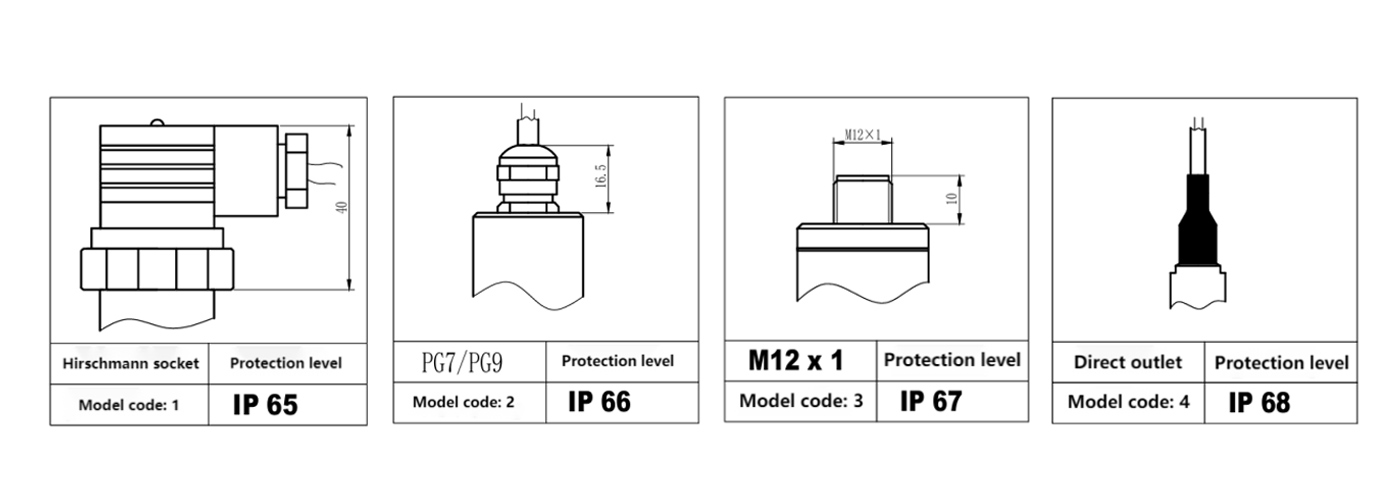

Electrical Interface

Selection Guide

PM04-	High-Temperature Pressure Transmitter
	Code	Left digit represents product type;
		right digit represents electrical interface
	1	Diffused silicon with 5 heat sinks, Hirschmann socket
	11	Diffused silicon with 10 heat sinks, Hirschmann socket
	…	21: Sapphire Hirschmann socket;
		02: Diffused silicon with 5 heat sinks, PG7;
		03: Diffused silicon with 5 heat sinks, M12;……
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn
						C8
						G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
PM04-	1	S1	U1	30	C1	X001PU	-[0…1]	MPa
