PM06X Series Pressure and Temperature Integrated Transmitter

Product Features

◆There are many options for signals;
◆Simultaneous measurement of pressure and temperature;
◆Anti-interference，Surge protection;
◆316L stainless steel isolation diaphragm, integrated design;

Product Description

The PM06X series pressure and temperature transmitter utilizes the piezoresistive effect of diffused silicon or ceramic sensitive elements to convert static pressure into electrical signals. It has a built-in PT100 temperature sensor that can simultaneously measure the medium temperature. Combined with a dedicated digital circuit, through signal processing such as signal amplification, linear compensation, anti-interference, and surge protection, it is made into an integrated product capable of measuring both pressure and temperature.

Product Application

◆Groundwater and geothermal wells;
◆Agricultural irrigation;
◆Meteorological detection and disaster prevention systems;
◆Liquid level, temperature measurement and control;

Technical Parameters

Measurement Range	-100…10…1000KPa
	0…1…60MPa
Pressure Type	Gage pressure(G);
	Sealed gauge pressure（S）;
	Absolute pressure（A）
Output Signal	4…20mA(dual channel); IIC;RS485
Input Voltage	8…30V DC;5…8VDC;3.3VDC
Accuracy Class	0.1%FS	0.2%FS	0.5%FS
Zero Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Sensitivity Drift	0.01%FS/℃	0.02%FS/℃	0.05%FS/℃
Compensation Temperature	0…50℃; -10…70℃
Operating Temperature	-20～+85℃
Storage Temperature	-40～+125℃
Long-Term Stability	≤0.2±%FS/Year;≤0.5±%FS/Year
Response Time	＜1ms
Overload Capacity	200%
Load Resistance	R=(U-12.5)/0.02-RD
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	316L;C-276;TC4
Shell material	304SS;316L;C-276;TC4
Electrical connection	DIN43650A or custom
Process connection	M20×1.5 or custom
Protection Level	IP65;IP66;IP68
Explosion-Proof Grade	Ex ia II CT6 (Optional)

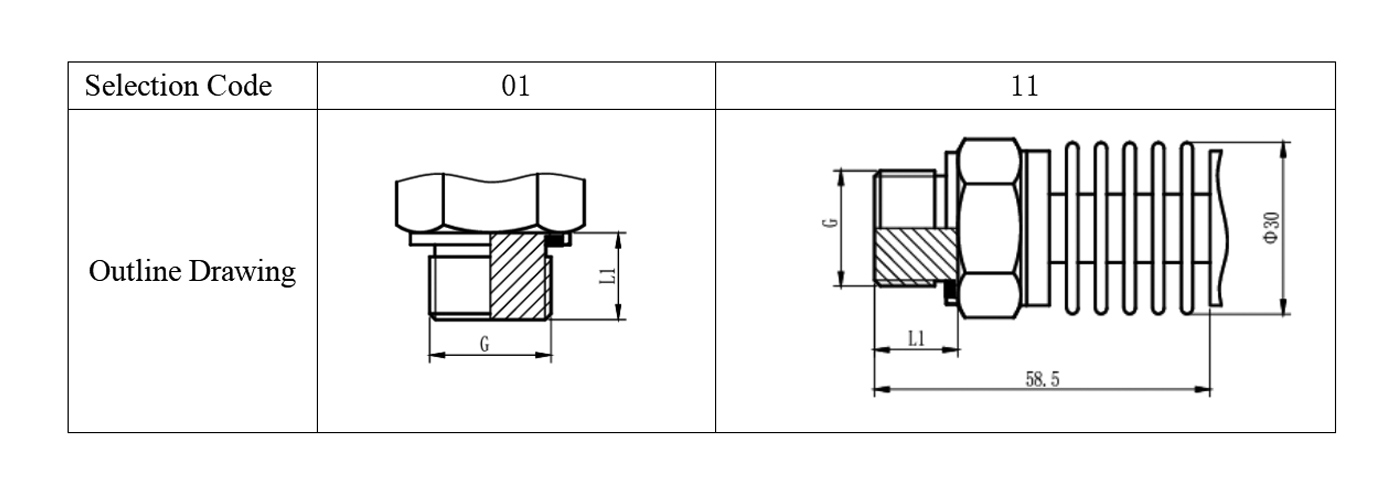

Product Type

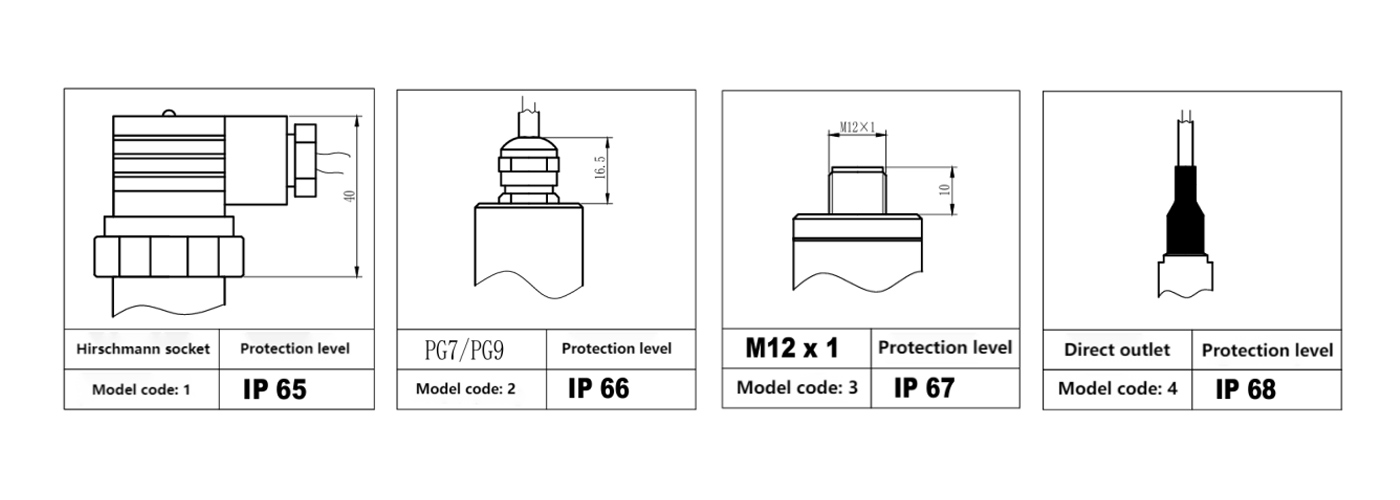

Electrical Interface

Selection Guide

PM06-	Pressure and Temperature Transmitter
	Code	Left digit represents product type;
		Right digit represents electrical interface
	1	Hirschmann product (≤80℃)
	11	Hirschmann product (≥80℃, ≤150℃)
	…	21:Hirschmann product (≥150℃, ≤250℃)
		Code	Output signal
		S1	4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ;
		…	S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization
			Code	Power supply range
			U1	8…30VDC
			…	U2:3.1…8VDC;U3:3.3VDC
				Code	Housing material
				30	304SS;31:316L;32:TC4;
				…	33://;34://;35:C276
					Code	Thread specification
					C1	M20*1.5
					C2	G1/2
					…	C3:G1/4；C4:1/2NPT……Cn
						C8
						G1/8
						Cable length	Cable material
						Xxxx	PU; PE; PV; PTFE
							Measurement Range	Unit
PM06-	1	S1	U1	30	C1	X001PU	-[0…1]	MPa
