Product Features：

■ High precision and high stability

■ Wear resistance and corrosion resistance

■ High overload resistance

■ Wide operating temperature range

Product Application：

■ Petroleum and petrochemical industry

■ Aerospace industry

■ Pneumatic and hydraulic monitoring

■ Industrial process control

Product Description

This pressure transmitter is encapsulated with a metal-based pressure-sensitive chip independently developed and produced by our company. The wetted parts are made of 17-4PH stainless steel. It can provide a variety of electrical and pressure connections as well as electrical outputs. The manufacturing process adopts the most advanced automated equipment to ensure consistent sensor quality and performance. It can provide comprehensive accuracies of 0.2%FS, 0.5%FS and 1%FS within the pressure range from 0.5MPa to 250MPa. It has the advantages of long-term fatigue resistance, wide temperature range, impact resistance and high reliability. It can perform accurate measurements even under the harshest conditions and is suitable for pressure measurement of various gases and liquids.

Technical Parameters

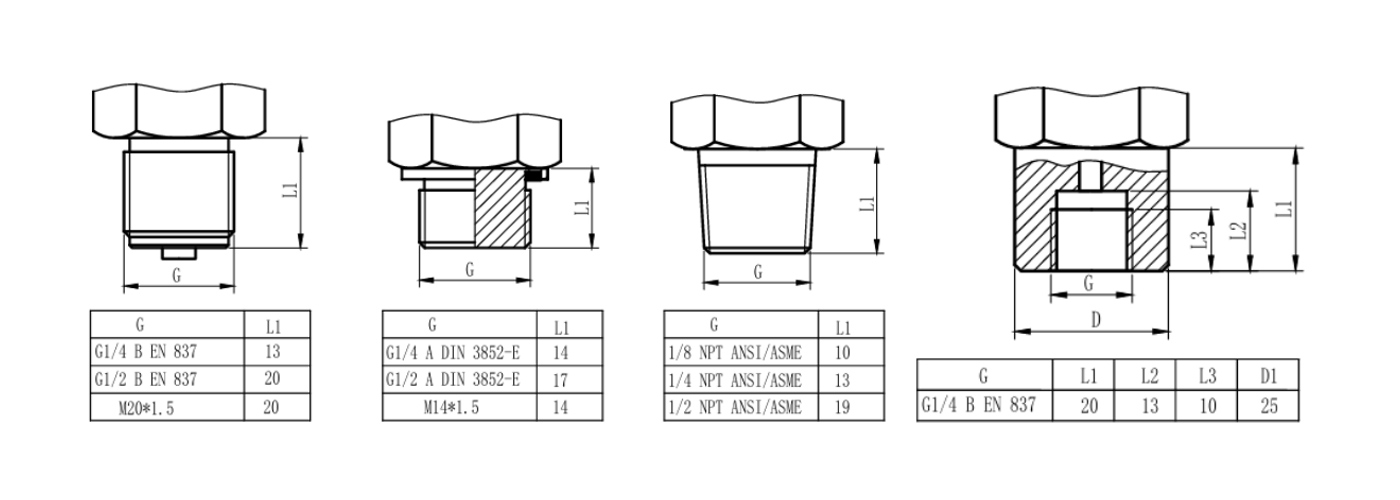

Process Interface

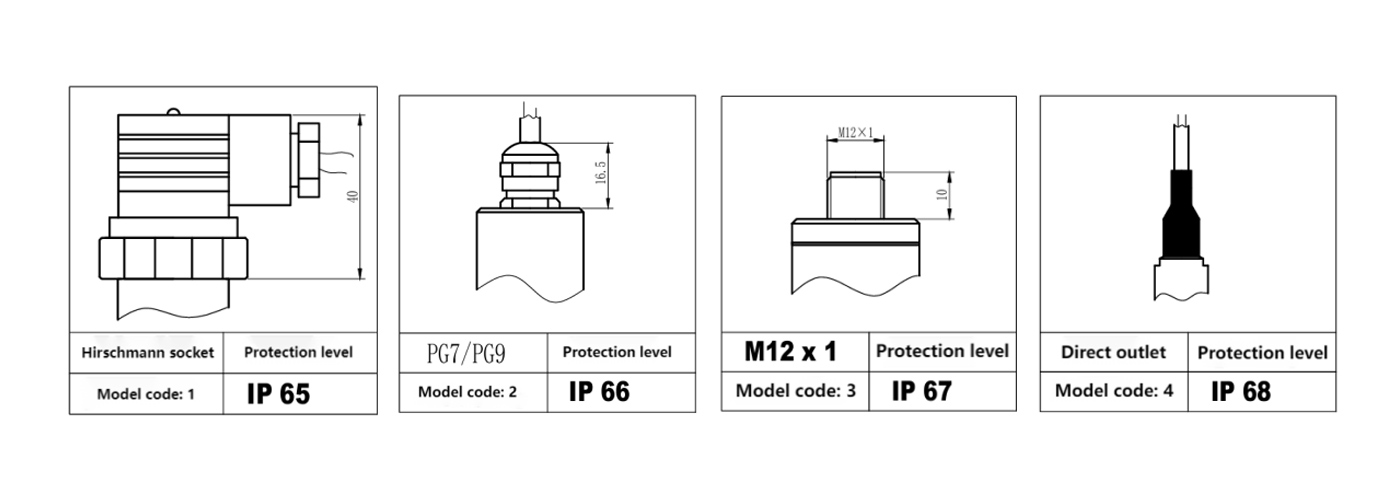

Electrical Interface

Selection Guide
