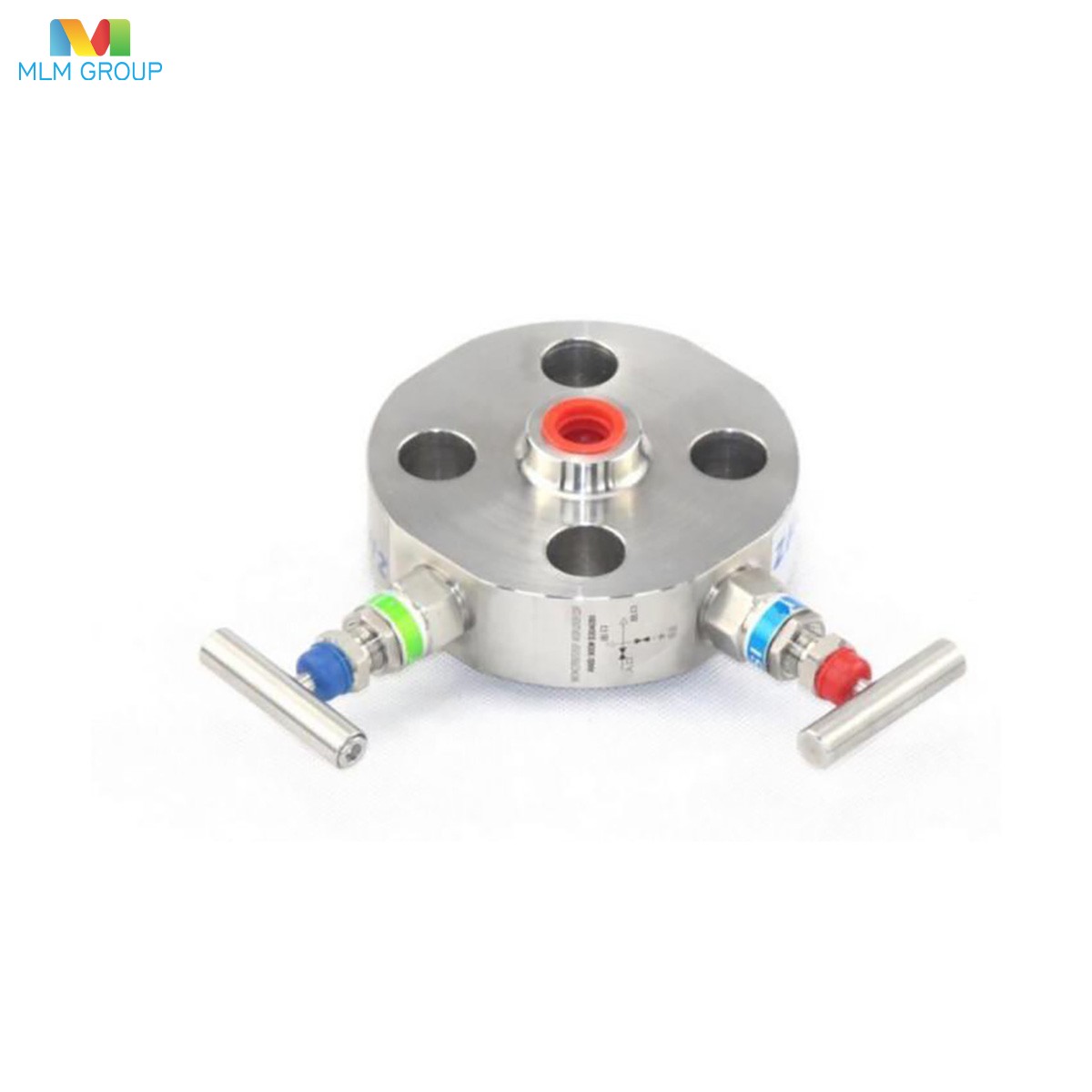

Flange Connectors
● The selection of flange design meets the requirements of IEC61518.
● The standard flange gasket is fluorocarbon FKM O – ring.
● Flange gaskets and flange bolts are included in the manifold.

Product Features
● Stainless steel valve body with a maximum pressure of 414bar(6000psi g).
● Temperature range – 54 – 232℃ (- 65 – 450℉), usingfluorocarbon packing.
● Temperature range – 54 – 649℃ (- 65 – 1200℉), using graphitepacking.

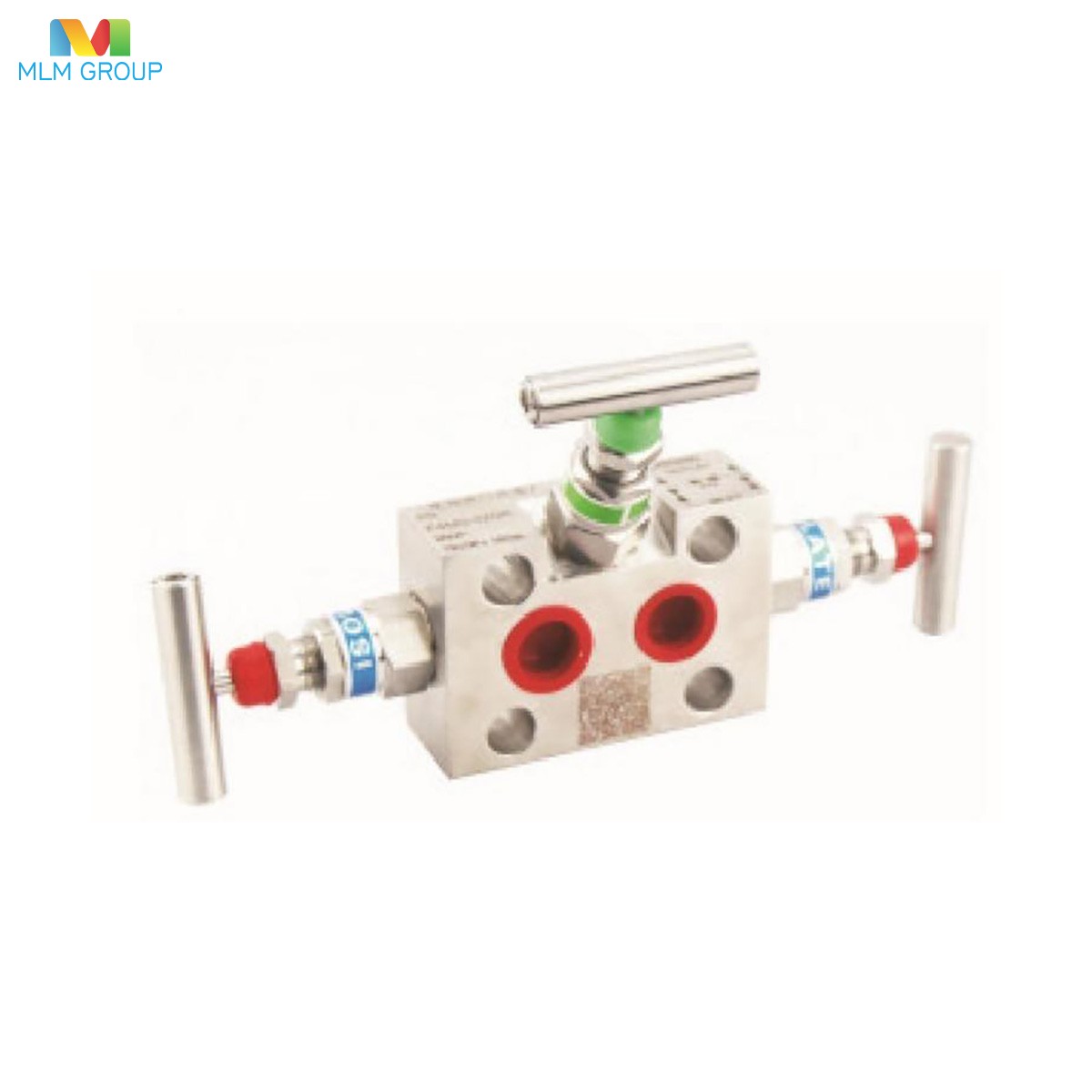

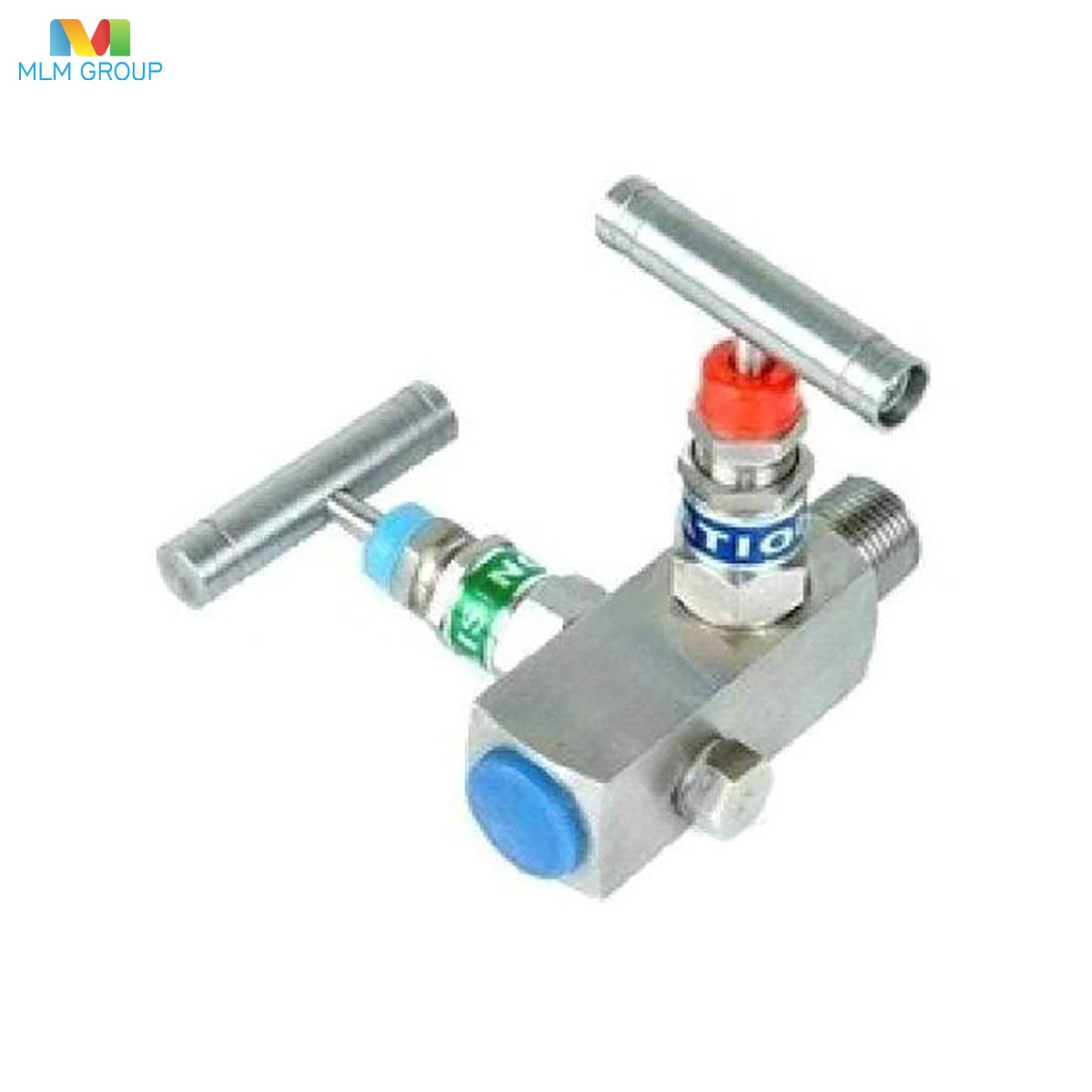

Valve Body Design
● One – piece structure for increased strength and internal finish;
● No burrs on threads and inner surfaces to reduce leakage and improve transmitter accuracy.
