Thermal Mass Gas Flow Meter
Detail description Advantages Measuring the mass flow or volume flow of gas Do not need temperature and pressure compensation Easy operation Good vibr...
|
|
Detail description
Advantages
- Measuring the mass flow or volume flow of gas
- Do not need temperature and pressure compensation
- Easy operation
- Good vibration resistance
- long service life.
- Easy installation and maintenance
- High accuracy and stability
Basic parameters
| Measuring Medium | Various gases (Except the acetylene) |
| Pipe Size | DN10 ~ DN4000mm |
| Velocity | 0.1~100 Nm/s |
| Accuracy | ±1~2.5% |
| Working Temperature | Sensor: -40°C ~ +220°C Transmitter: -20°C ~ +45°C |
| Working Pressure | Insertion Sensor: medium pressures 1.6MPa Flange Sensor: medium pressures 1.6MPa |
| Power Supply | Compact type: 24VDC or 220VAC, Power consumption <18W Remote type: 220VAC |
| Response Time | 1s |
| Output | 4-20mA (optoelectronic isolation ), maximum load 500Ω), Pulse, RS485 (optoelectronic isolation ) and HART |
| Alarm Output | 1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC |

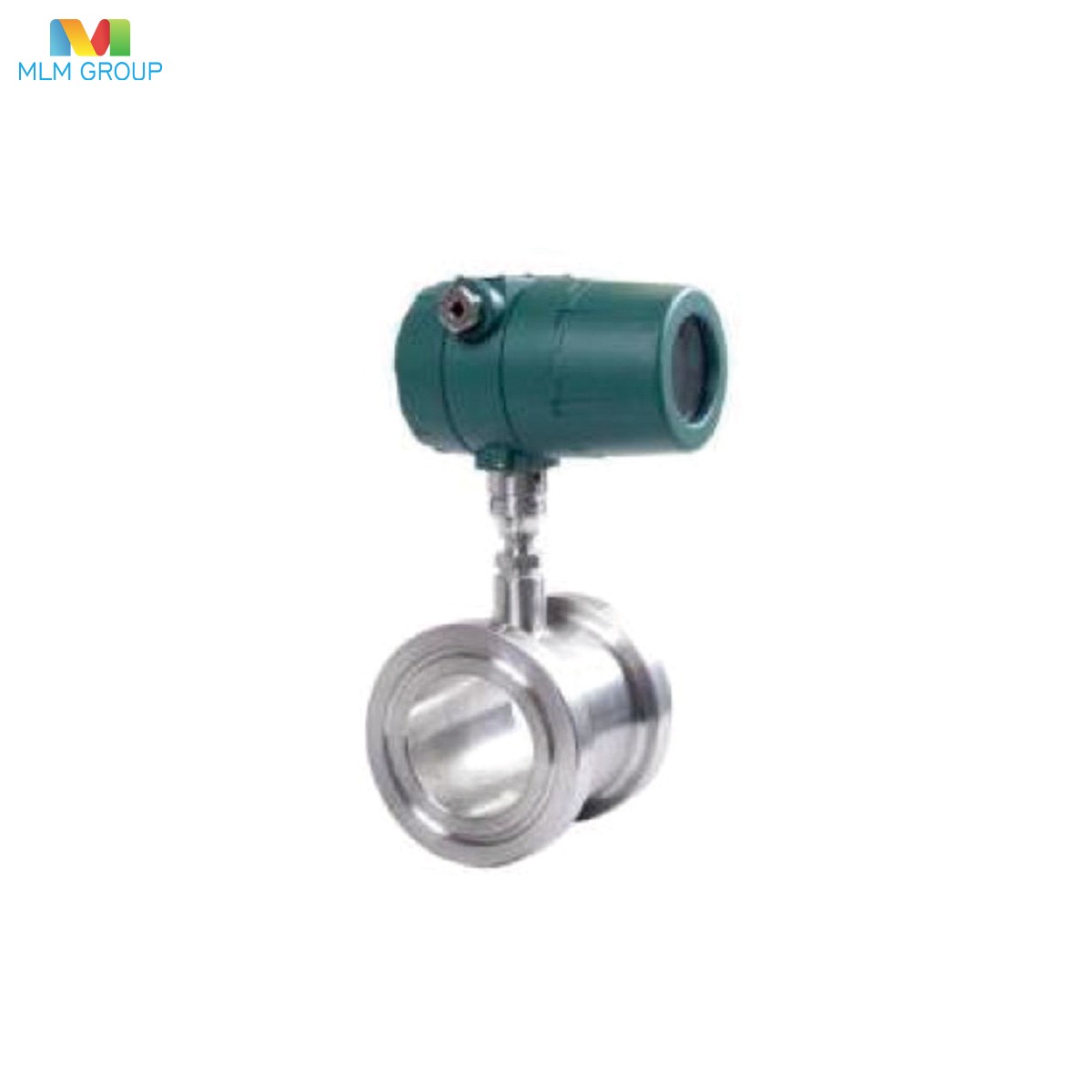

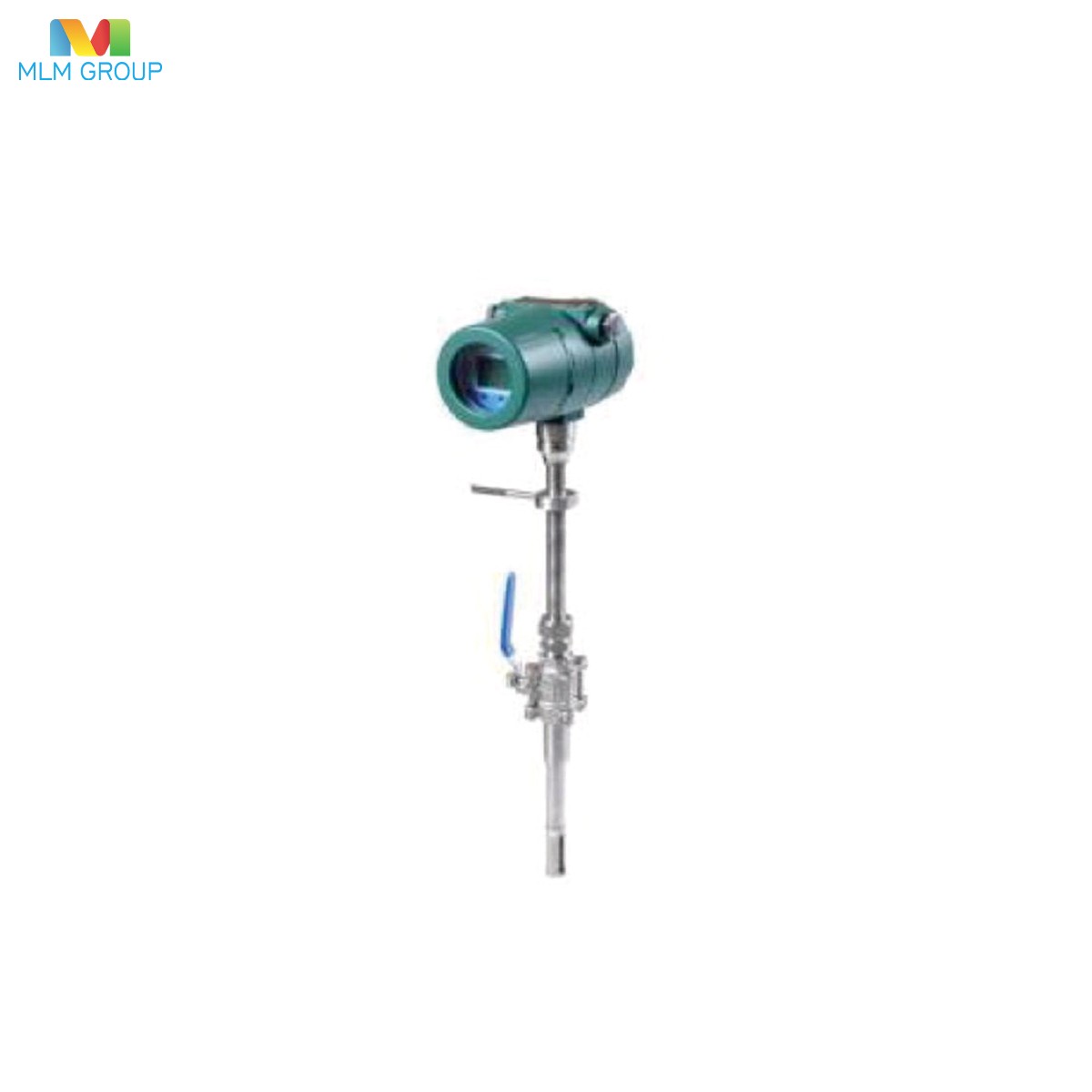

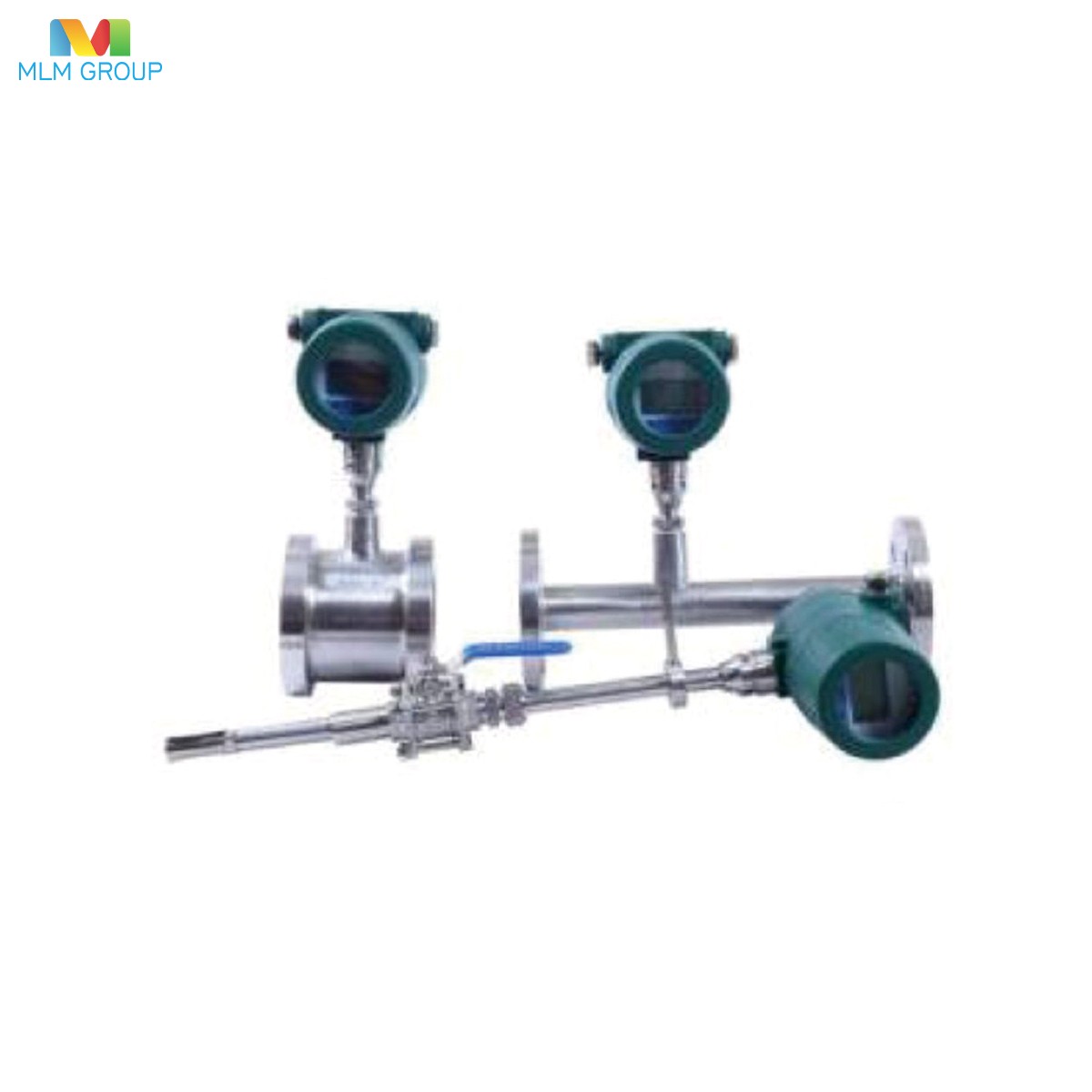

| Sensor Type | Standard Insertion, Hot-tapped Insertion and Flanged |
| Construction | Compact and Remote |
| Pipe Material | Carbon steel, stainless steel, plastic, etc |
| Display | 4 lines LCDMass flow, Volume flow in standard condition, Flow totalizer, Date andTime |
| Protection Class | IP65 |
| Sensor Housing Material | 316 |
