Chocolate Coating And Polishing Production Line
This series of chocolate coating and polishing line is scientifically and reasonably designed, with a compact structure, a small footprint, diverse functions, wide applications, and simple operation.It can be processed and customized according to customer needs, and the equipment is widely used for upgrading and processing of foods such as candy and nuts.
|
|
Introduction To Chocolate Coating And Polishing Production Line:
- This series of chocolate coating and polishing line is scientifically and reasonably designed, with a compact structure, a small footprint, diverse functions, wide applications, and simple operation.
- It can be processed and customized according to customer needs, and the equipment is widely used for upgrading and processing of foods such as candy and nuts.
Description

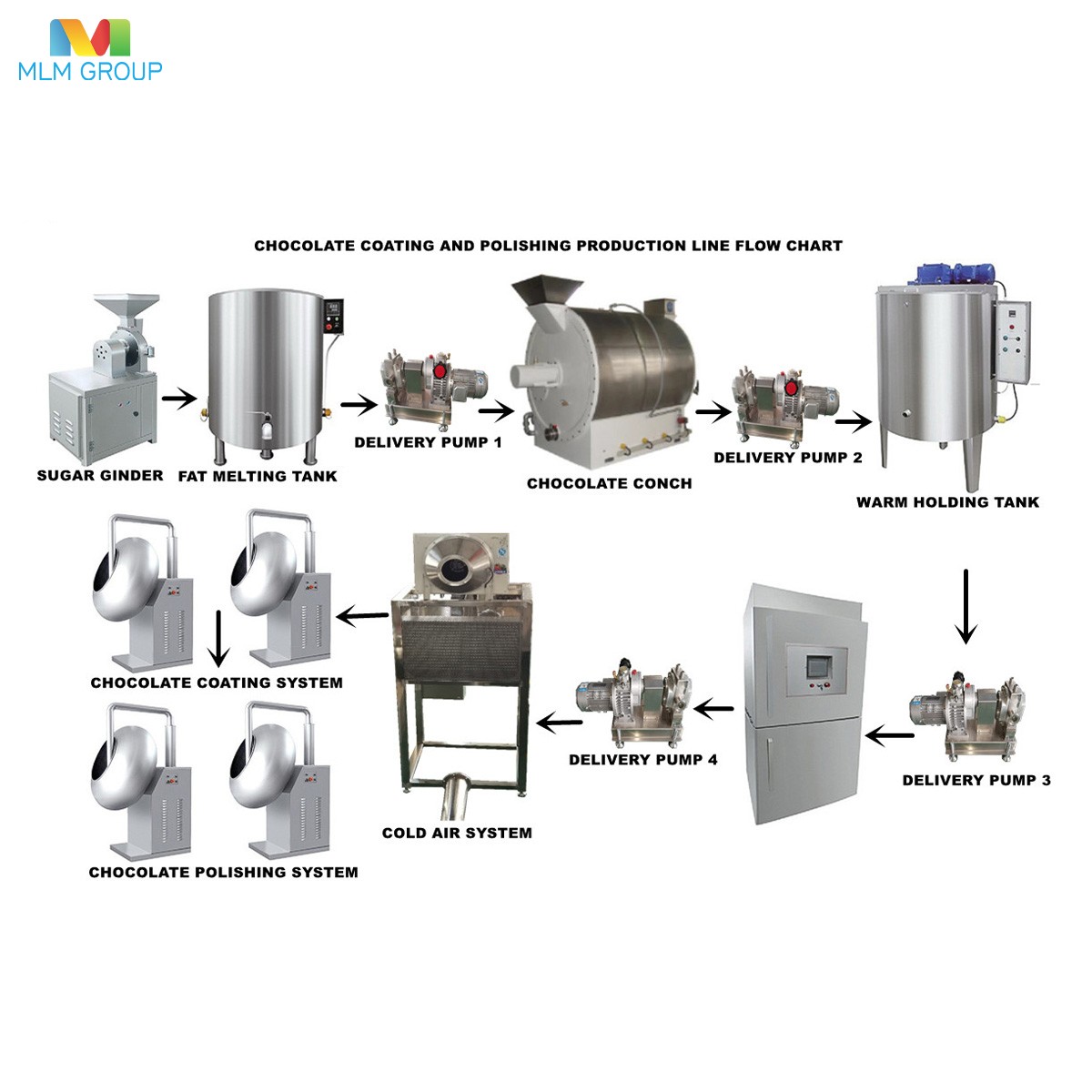

Chcolcate Coating and Polishing Production Line Components:
01.Sugar Grinder
02.Fat Melting Tank
03.Delivery Pump
04.Chocolate Conch
05.Delivery Pump
06.Warm Holding Tank
07.Delivery Pump
08.Tempering Machine
09. Delivery Pump
10.Cold Air and Hot Air Circulating System
11-14.Chocolate Coating and Polishing Machines
Technical Parameters of Chocolate Coating and Polishing Production Line:
| Items | MLM500 | MLM1000 | |
| Production Capacity | 100-250KG/H | 250-500KG/H | |
| Product Weight | 2-10Grams/Pcs | 2-10Grams/Pcs | |
| Product Size | Customized | Customized | |
| Environment Temperature | 22-25℃ | 22-25℃ | |
| Cooling Temperature | 5℃-Minus 10℃ | 5℃-Minus 10℃ | |
| Relative Humidity | 50%-55% | 50%-55% | |
| Cooling Power | 10P Cold Refrigerator | 16P Cold Refrigerator | |
| Cooling Ways | Air Cooled | Air Cooled | |
| Voltage | 380V/3PH/50Hz | 380V/3PH/50Hz | |
| Total Power | 50KW | 80KW | |
| Machine Weight | 6000KG | 12000KG | |
| Forming Machine Size | 8000×4000×3000MM | 16000×5000×3000MM | |
