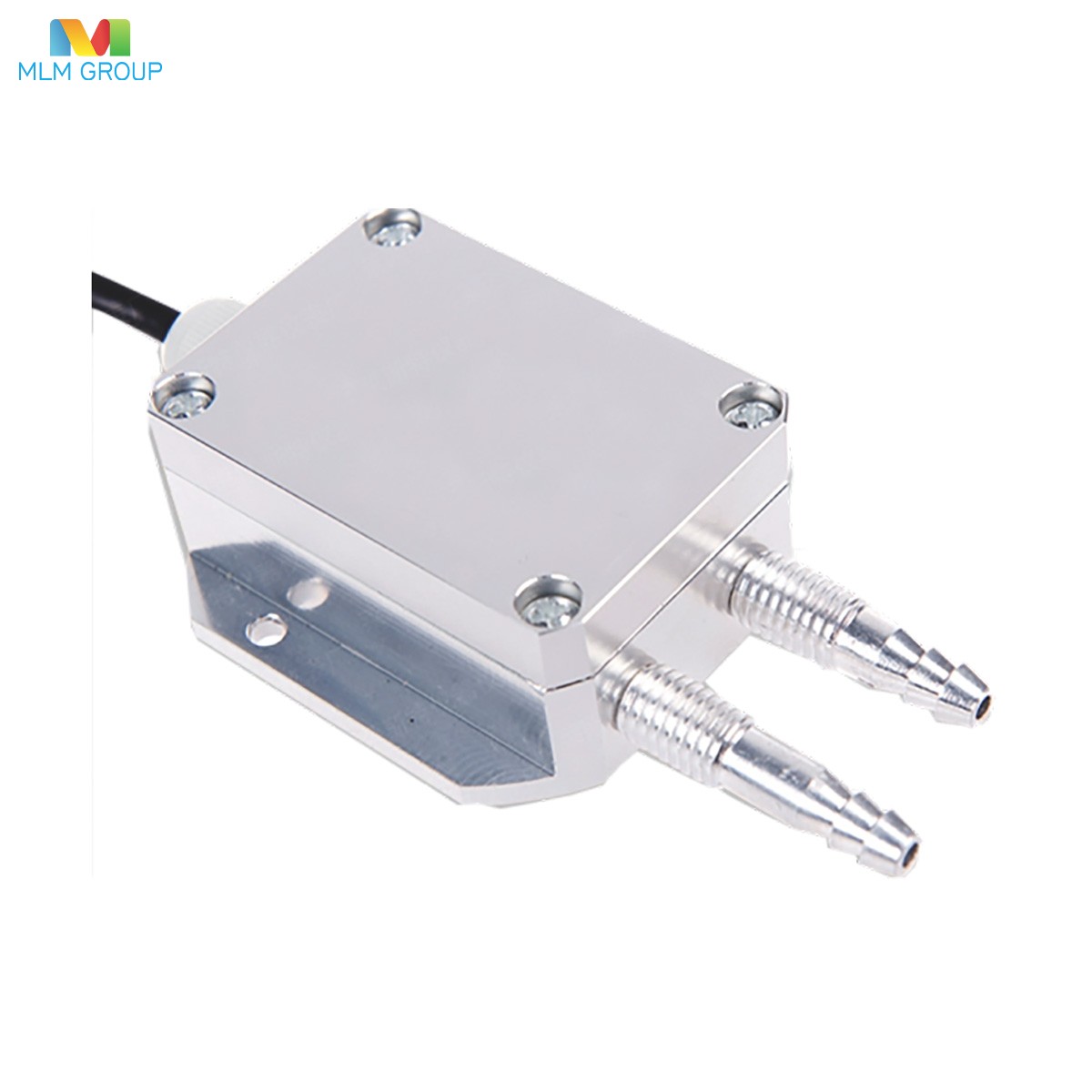

PM07X Series Differential Pressure Transmitter
|
|
Product Features
◆There are many options for signals;
◆Anti-interference，Surge protection;
◆High precision，High reliability，German chip;
◆316L stainless steel isolation diaphragm, integrated design;
◆High static pressure resistance and strong overload resistance;
Product Description
The PM07X series differential pressure transmitter encapsulates the differential pressure chip in the positive and negative pressure chambers of the product. Pressure is introduced through the threaded interfaces at both ends to act on the chip, outputting a linear voltage. Combined with a dedicated digital circuit, after signal processing such as signal amplification, linear compensation, anti-interference, and surge protection, it becomes an integrated product that outputs industrial standard signals.
Product Application
◆Petrochemical industry;
◆Constant pressure water supply;
◆Measurement and control technology;
◆Hydraulic and pneumatic fields;
Technical Parameters
| Measurement Range | ±100Pa;±500Pa;±1000Pa;±5KPa | ||
| -100KPa…10KPa…2.5MPa | |||
| Pressure Type | Differential Pressure（D） | ||
| Output Signal | 4…20mA;0.5…4.5VDC;0…10VDC;IIC;RS485 | ||
| Input Voltage | 8…30V DC;5…8VDC;3.3VDC | ||
| Accuracy Class | 0.1%FS | 0.2%FS | 0.5%FS |
| Zero Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
| Sensitivity Drift | 0.01%FS/℃ | 0.02%FS/℃ | 0.05%FS/℃ |
| Compensation Temperature | 0…50℃; -10…70℃ | ||
| Operating Temperature | -20～+85℃ | ||
| Storage Temperature | -40～+125℃ | ||
| Long-Term Stability | ≤0.2±%FS/Year;≤0.5±%FS/Year | ||
| Response Time | ＜1ms | ||
| Overload Capacity | 200% | ||
| Load Resistance | R=(U-12.5)/0.02-RD 其中：U为电源电压，RD电源内阻 | ||
| Measuring Medium | Corrosive media compatible with 316L | ||
| Diaphragm Material | 316L | ||
| Shell material | 304SS;316L;PTFE;PVDF;TC4 | ||
| Electrical connection | DIN43650A or custom | ||
| Process connection | M20×1.5 or custom | ||
| Protection Level | IP65;IP66;IP68 | ||
| Explosion-Proof Grade | Ex ia Ⅱ CT6 (Optional) | ||

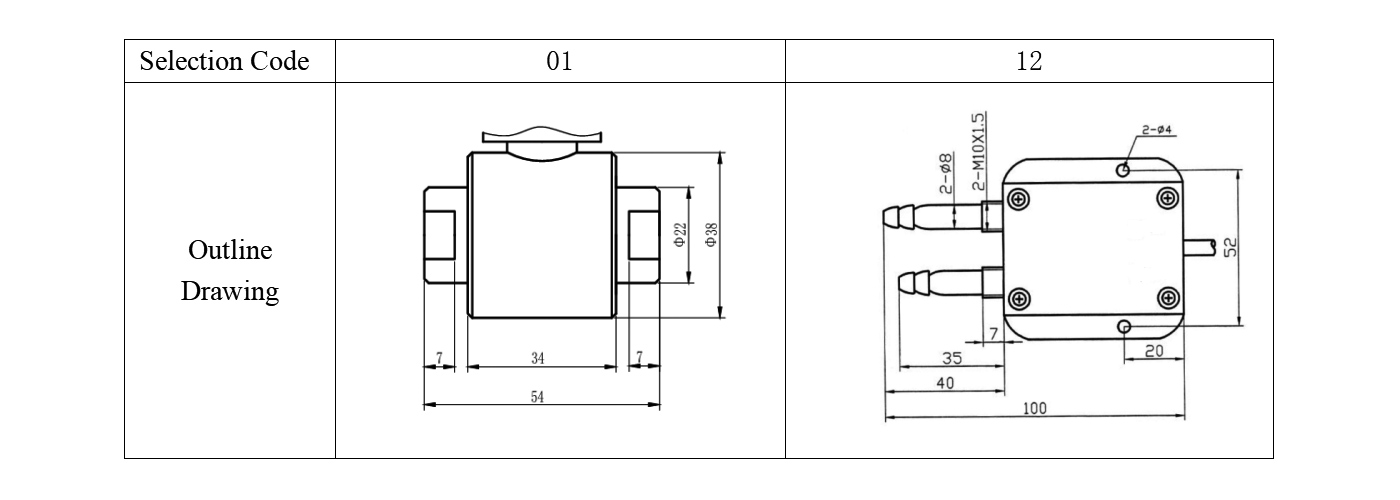

Process Interface
| Selection Code | 01 | 12 |
| Outline Drawing |

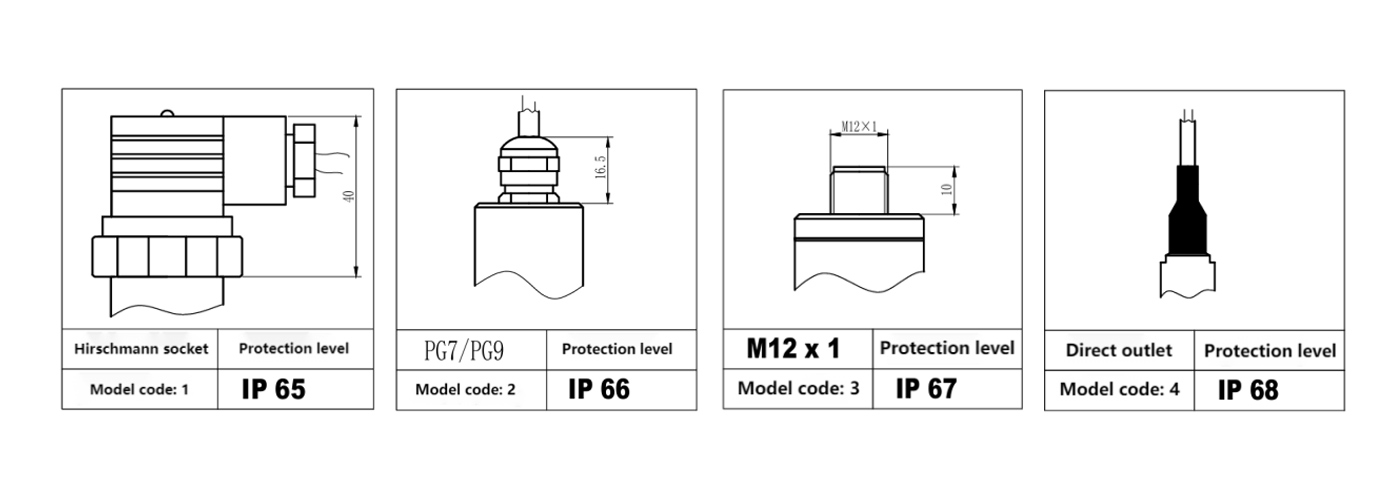

Electrical Interface
Selection Guide
| PM07- | Differential Pressure Transmitter | ||||||||
| Code | Left digit represents product type; Right digit represents electrical interface | ||||||||
| 01 | Hirschmann socket | ||||||||
| 02 | PG7 cable gland | ||||||||
| … | 03:M12 socket;;04:Liquid level outlet; 05:Parker socket; 06:Small Hirschmann; 0T:Special customization | ||||||||
| Code | Output signal | ||||||||
| S1 | 4…20mA; S2:0.5…4.5VDC; S3:0…5VDC ; | ||||||||
| … | S4:0…10VDC; S5:IIC; S6:RS485; ST:Special customization | ||||||||
| Code | Power supply range | ||||||||
| U1 | 8…30VDC | ||||||||
| … | U2:3.1…8VDC;U3:3.3VDC | ||||||||
| Code | Housing material | ||||||||
| 30 | 304SS;31:316L;32:TC4; | ||||||||
| … | 33://;34://;35:C276 | ||||||||
| Code | Thread specification | ||||||||
| C1 | M20*1.5 | ||||||||
| C2 | G1/2 | ||||||||
| … | C3:G1/4；C4:1/2NPT……Cn C8 G1/8 | ||||||||
| Cable length | Cable material | ||||||||
| Xxxx | PU; PE; PV; PTFE | ||||||||
| Measurement Range | Unit | ||||||||
| PM07- | 01 | S1 | U1 | 30 | C1 | X001PU | -[0…1] | MPa | |
